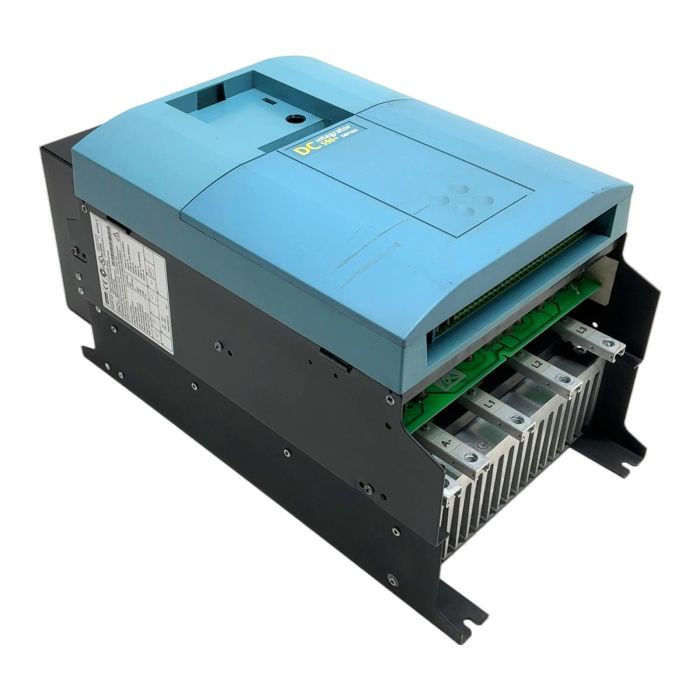

Parker 180A Digital DC Drive from the 590P Integrator Series

Description

The Parker 590P-53318032-POO-FOAO is a high-performance digital DC drive designed for the precise control of DC motors in a wide range of industrial applications. As part of the renowned 590P Integrator series, this model offers 4-quadrant regenerative control, allowing for efficient energy management during motor braking. Its robust design and flexible configuration options make it a reliable choice for demanding environments.

Specifications

• Manufacturer: Parker
• Series: 590P Integrator
• Model: 590P-53318032-POO-FOAO
• Type: Digital DC Drive
• Input Voltage: 220-500 Volts AC, 3-Phase, 50/60Hz
• Maximum Armature Current: 180 Amps DC
• Control Type: 4-Quadrant Regenerative
• Firmware Version: 8V8
• Feedback Options: Armature Voltage (standard), Tacho/Encoder (via option module)

Label Info

• MODEL NO: 590P-53318032-POO-FOAO
• CAT NO: 590P/0180/500/0010/FR/AN/0/230/0
• SERIAL NO: 365251550020040 1010

Application

This drive is ideal for applications requiring precise speed and torque control, such as extruders, winders/unwinders, machine tool spindles, and material handling systems.

Country of Origin

Made in the UK.

CO2 Impact

By purchasing this pre-owned drive, you contribute to a circular economy and avoid approximately 200 kg of CO2 emissions associated with the production of a new unit. This is equivalent to driving a standard car for 1000 kilometers.

Availability

This item is an obsolete but crucial spare part for maintaining existing systems. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

The main rating plate indicates FW: 8V8, which should be considered the primary firmware for the main control board. The FW: 7V4 on the internal sticker might relate to an older configuration or a sub-module. Always verify compatibility with your system software before installation.

This is a 4-quadrant (regenerative) drive, meaning it can control the motor's speed and torque in both forward and reverse directions, and it can return energy to the power supply during braking, which improves energy efficiency.

The base drive configuration supports armature voltage feedback. However, it features slots for option modules, and internal labels indicate compatibility with Encoder and Microtach (tacho) feedback for higher precision speed and position control applications.
