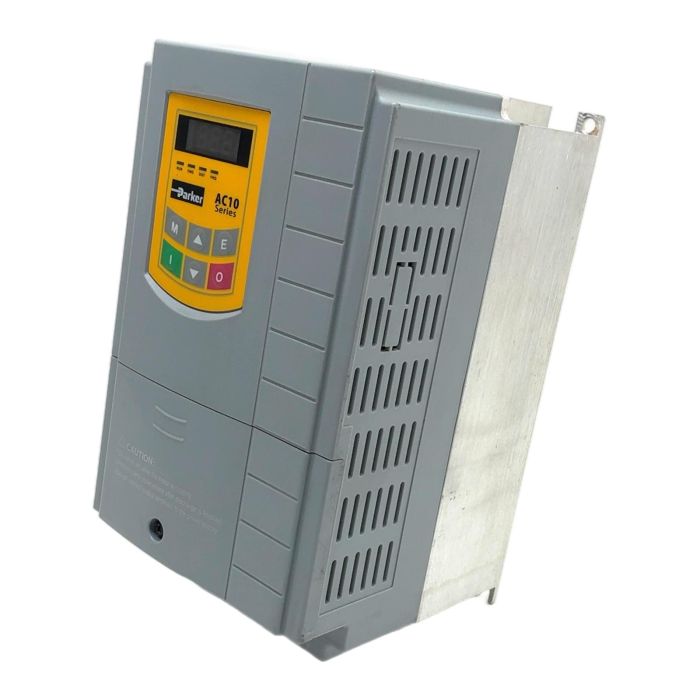

Parker AC10 Series Compact AC Drive

Description

The Parker 10G-43-0090-BF is a high-performance frequency inverter from the AC10 series, designed to provide efficient and precise speed control for AC induction motors. This 4.0 kW drive is compact and robust, making it suitable for a variety of industrial applications such as conveyors, fans, pumps, and machine tools. It features sensorless vector mode, an integrated keypad, and standard Modbus RTU communication for easy setup and system integration.

Specifications

• Manufacturer: Parker Hannifin Corporation
• Series: AC10
• Model: 10G-43-0090-BF
• Input Voltage: 3-Phase 380-480V AC, 50/60 Hz
• Input Current: 11.9 / 9.2 A
• Output Power: 4.0 kW (5.5 HP)
• Output Current: 9.0 A
• Output Frequency: 0-590 Hz
• Enclosure Rating: IP20
• Braking: Integrated dynamic braking chopper
• Communication: Modbus RTU via RJ45

Label Info

• Model: 10G-43-0090-BF
• Input: 3 PH AC 380-480 V, 11 / 9.2 A, 50/60 Hz
• Output: 3 PH AC 0-INPUT V, 9.0 A, 0-590 Hz, 4.0 kW
• SW NO: 2.31
• BS NO: 1.02

Application

Ideal for general-purpose applications requiring reliable variable speed motor control. This includes but is not limited to packaging machinery, conveyor systems, HVAC fans, and industrial pumps.

Country of Origin

Made in China.

CO2 Impact

Choosing this pre-owned unit over a new one avoids the emission of approximately 100 kg of CO2. This saving is equivalent to the CO2 captured by 5 trees in a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This model comes standard with Modbus RTU communication via its RJ45 port, allowing for easy integration into existing control networks.

Yes, the 'B' in the part number 10G-43-0090-BF indicates that a dynamic braking chopper is fitted as standard, allowing for the connection of an external braking resistor for applications requiring fast deceleration.

Absolutely. The Parker AC10 series supports both simple V/Hz control and advanced Sensorless Vector Control (SVC) for improved motor torque and speed regulation across a wide range.
