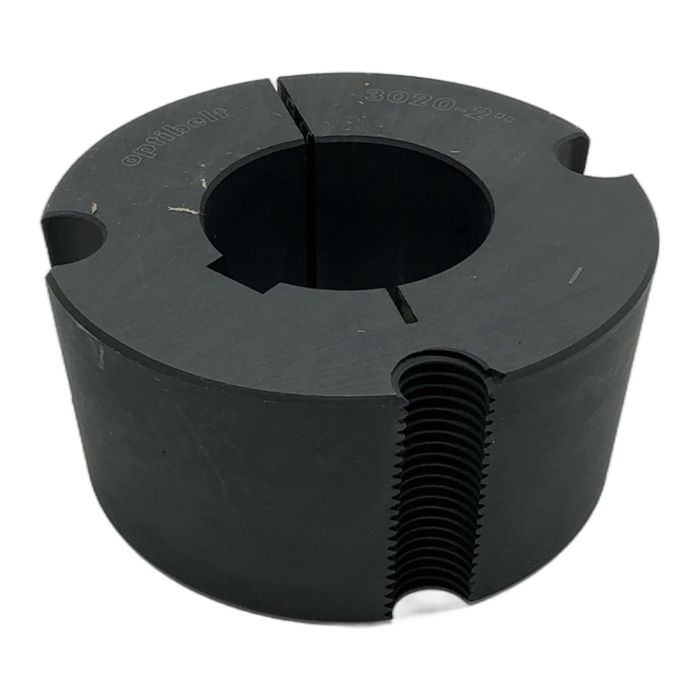

Optibelt 3020 Taper Lock Bush - 2-inch Bore

Description

The Optibelt TB 3020 is a high-quality taper lock bush designed for securely mounting pulleys, sprockets, and other transmission components onto a 2-inch shaft. Made from durable cast iron, it provides a reliable and backlash-free connection, ensuring optimal performance in a wide range of industrial applications. The split design allows for easy installation and removal.

Specifications

• Manufacturer: Optibelt
• Type: TB 3020
• Bore Diameter: 2 inches (Imperial)
• Material: Cast Iron
• For use with: Pulleys, Sprockets, Couplings
• Fixing: Keyed with two set screws (included)

Label Info

• Brand: Optibelt
• Type: 3020
• Bore: 2"

Application

This taper bush is commonly used in conveyor systems, agricultural machinery, industrial fans, pumps, and general mechanical power transmission systems where a secure shaft connection is critical.

Country of Origin

This product is manufactured by the Arntz Optibelt Group in Germany.

CO2 Impact

Choosing this reused component over a new one prevents the emission of approximately 5.0 kg of CO2, which is comparable to driving a car for 25 kilometers. This makes it an environmentally responsible choice for your machinery.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

First, ensure the shaft, bore of the bush, and inner bore of the pulley are clean and free of oil or debris. Insert the bush into the pulley, aligning the holes. Lightly oil the threads of the set screws and insert them. Slide the complete assembly onto the shaft, position it correctly, and then tighten the screws alternately and evenly to the manufacturer's recommended torque.

According to ANSI/BS standards, a 2-inch bore typically requires a 1/2 inch width x 1/4 inch depth keyway. However, it is always best to confirm this with the official Optibelt technical documentation or measure the existing keyway to ensure a proper fit.

Yes, the taper lock design provides a high clamping force and excellent concentricity, which makes it very effective in resisting vibration and shock loads. For applications with extreme vibration, it is good practice to perform periodic checks to ensure the set screws remain at their specified torque.
