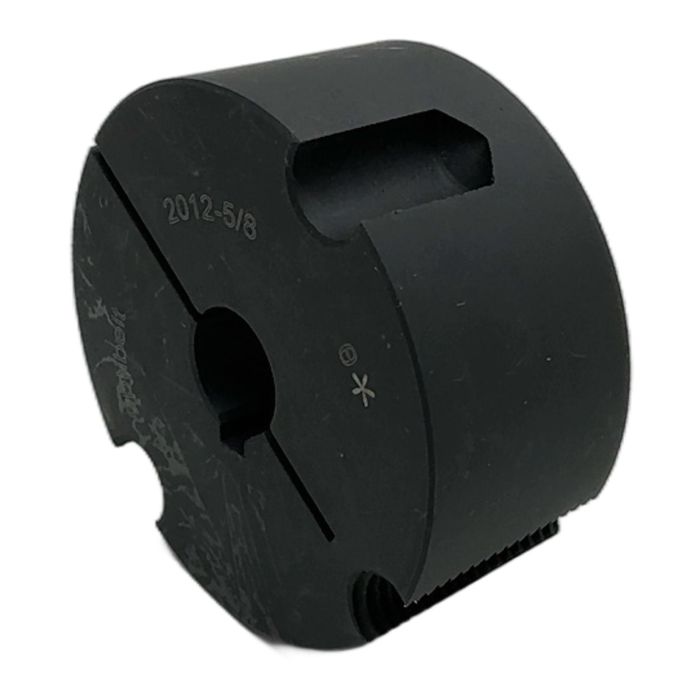

Optibelt Taper Lock Bush TB 2012-5/8

Description

This Optibelt Taper Bush, model TB 2012-5/8, is an essential component for mechanical power transmission systems. It provides a reliable and easy-to-install method for fixing pulleys, sprockets, or couplings to a shaft. Made from high-grade materials, it ensures a secure, backlash-free connection, suitable for a wide range of industrial applications.

Specifications

• Brand: Optibelt
• Model: TB 2012-5/8
• Type: Taper Lock Bush
• Bore Size: 5/8 inch
• Size Code: 2012
• Material: High-grade cast iron/steel

Label Info

• Manufacturer: Optibelt
• Part Number: 2012-5/8

Application

Used across various industries including manufacturing, agriculture, and material handling to mount drive components onto shafts. Ideal for V-belt pulleys, timing belt pulleys, chain sprockets, and shaft couplings.

Country of Origin

Germany

CO2 Impact

By purchasing this pre-owned component, you are saving approximately 1.2 kg of CO2. This is equivalent to the emissions from driving a car for 6 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the correct procedure for installing a 2012 taper bush?

Clean the shaft, bore, and the outside of the bush. Insert the bush into the pulley or sprocket hub, aligning the holes. Lightly oil the grub screws and thread them into the holes. Slide the assembly onto the shaft, position it, and then progressively tighten the screws to the manufacturer's recommended torque value to ensure an even and secure clamp.

Is this 5/8 inch bore compatible with a 16mm shaft?

No, a 5/8 inch bore is exactly 15.875mm. While very close to 16mm, using it on a 16mm shaft could cause installation issues or an improper fit, leading to vibration and premature wear. It is crucial to use a bush with the exact bore size matching your shaft diameter.

What does the '2012' designation signify?

'2012' is a standard size code for taper lock bushes. It defines key physical dimensions like the overall length, the large end diameter of the taper, and the bolt circle for the grub screws. This standardization allows for interchangeability between different manufacturers for the same size code.
