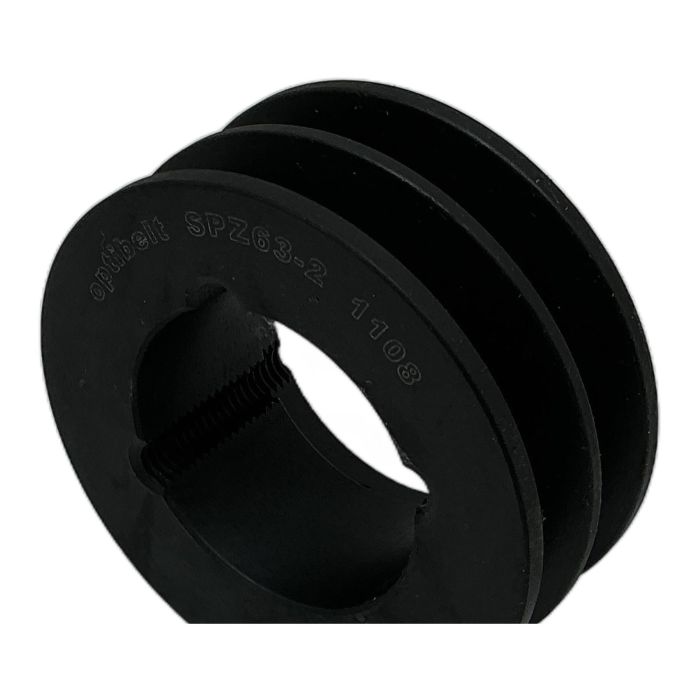

Optibelt SPZ63-2 1108 V-Belt Pulley

Description

The Optibelt SPZ63-2 is a high-quality, pre-bored v-belt pulley designed for use with a 1108 taper lock bush. This component is essential for power transmission systems, allowing for a secure and concentric connection to a motor shaft. Manufactured from durable cast iron, it features two grooves for SPZ section v-belts and has a pitch diameter of 63 mm. Its robust construction ensures long-lasting performance and reliability in demanding industrial environments.

Specifications

• Manufacturer: Optibelt
• Type: V-Belt Pulley
• Model: SPZ63-2
• Belt Profile: SPZ
• Number of Grooves: 2
• Pitch Diameter: 63 mm
• Bore Type: For Taper Lock Bush 1108
• Material: Cast Iron (GG20/EN-GJL-200)

Label Info

• Brand: optibelt
• Part Number: SPZ63-2 1108

Application

This pulley is widely used in various mechanical and industrial applications, including conveyor systems, pumps, fans, compressors, and general machinery manufacturing where reliable belt-driven power transmission is required.

Country of Origin

Germany

CO2 Impact

Opting for a reconditioned component like this Optibelt pulley saves approximately 0.9 kg of CO2 compared to manufacturing a new one. This is equivalent to the CO2 emissions from driving a car for 4.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A taper lock bush is a standardized, keyed mounting system that allows a pulley to be securely fitted to a wide range of shaft diameters. It provides a strong, concentric grip and simplifies installation and removal without needing a custom-bored pulley.

This pulley is designed for SPZ section narrow V-belts. You should select a belt with the 'SPZ' profile designation. The length of the belt will depend on the center distance between your pulleys in your specific application.

The maximum speed depends on the balancing grade, but for standard cast iron pulleys of this size (63 mm diameter), the peripheral speed should generally not exceed 35 m/s. Always consult the manufacturer's technical datasheets for precise operational limits in your specific application.
