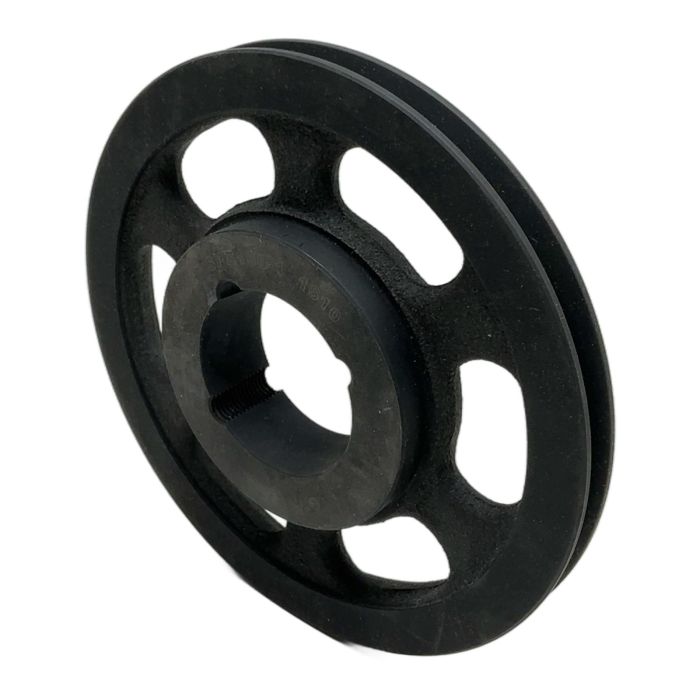

Optibelt SPZ180-1 V-Belt Pulley for Taper Bush 1610

Description

This is a single-groove V-belt pulley from Optibelt, model SPZ180-1. It is designed for use with SPZ section narrow V-belts and has a pitch diameter of 180 mm. The pulley is manufactured from high-grade cast iron for durability and balanced for smooth operation. It is prepared for a 1610 taper lock bush, which provides a secure and easy-to-install connection to a shaft. Ideal for various industrial power transmission systems.

Specifications

• Manufacturer: Optibelt
• Type: SPZ180-1
• Belt Profile: SPZ
• Number of Grooves: 1
• Pitch Diameter: 180 mm
• Bore Type: Tapered for Bush
• Taper Bush Size: 1610
• Material: Cast Iron (EN-GJL-200 or higher)

Label Info

• Brand: optibelt
• Model: SPZ180-1
• Taper Bush Size: 1610

Application

Suitable for a wide range of applications in general machinery, agricultural equipment, conveyors, fans, pumps, and other power transmission drives requiring an SPZ-profile V-belt.

Country of Origin

Optibelt is a German company. The product is likely manufactured in Germany or another European location. Country of origin is typically Germany.

CO2 Impact

By purchasing this pre-owned pulley, you help avoid the emission of approximately 3.6 kg of CO2, which is equivalent to driving a car for 18 kilometers. This choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A 1610 taper bush is a standardized mechanical component used to mount pulleys, sprockets, or couplings onto a shaft. It features a tapered outer surface that locks into the pulley's bore and a straight, keyed inner bore for the shaft, providing a strong, concentric grip when tightened.

These designations refer to different cross-sectional sizes of narrow V-belts. SPZ is the smallest (10mm top width), followed by SPA (13mm), SPB (16mm), and SPC (22mm). It is crucial to match the pulley groove profile (SPZ in this case) with the corresponding V-belt type for optimal performance and longevity.

First, ensure the pulleys are correctly aligned. Loosen the motor mounts to create slack in the drive. Fit the belt over the pulleys without forcing it. Then, move the motor back to apply tension. The correct tension is typically when the belt deflects about 1.5% of the span length under moderate thumb pressure. Finally, tighten all mounting bolts.
