Optibelt V-Belt Pulley with Taper Bush Bore

Description

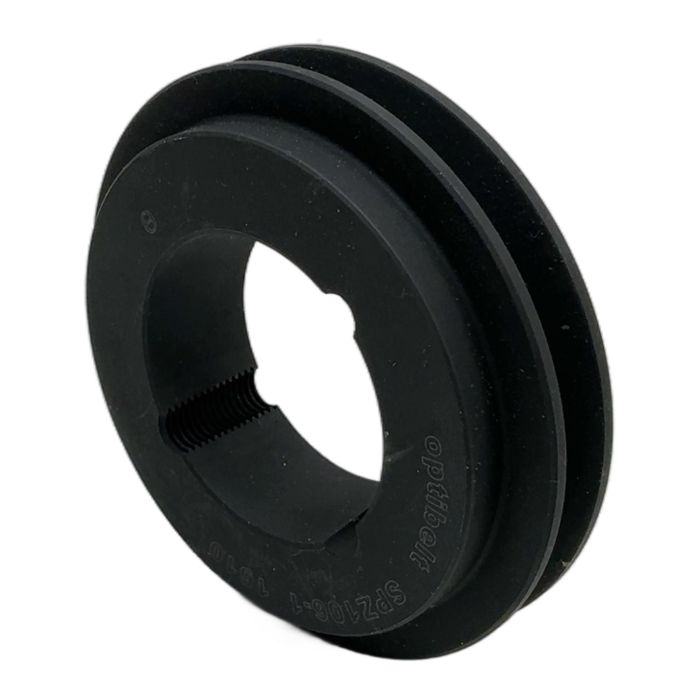

This is a single-groove V-belt pulley from Optibelt, model SPZ106-1, designed for a 1610 taper lock bush. It is manufactured from high-grade cast iron (EN-GJL-200) ensuring durability and reliable performance in various industrial power transmission systems. The SPZ profile is suitable for narrow V-belts, offering an efficient and compact drive solution.

Specifications

• Manufacturer: Optibelt
• Type: V-Belt Pulley
• Model: SPZ106-1
• Profile: SPZ
• Number of Grooves: 1
• Pitch Diameter: 106 mm
• Taper Bush Series: 1610
• Material: Cast Iron

Label Info

• Brand: optibelt
• Part Number: SPZ106-1
• Bush Size: 1610

Application

Ideal for use in general machinery, agricultural equipment, conveyor systems, fans, pumps, and other applications requiring mechanical power transmission via V-belts.

Country of Origin

Manufactured in Germany.

CO2 Impact

Opting for this reused V-belt pulley prevents the emission of approximately 1.4 kg of CO2, which would be generated in the production of a new one. This saving is equivalent to the CO2 absorbed by a tree in over two months.

Availability

This item is in stock and ready for immediate dispatch. The required 1610 taper lock bush is not included but can be sourced separately. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between pitch diameter (106mm) and outside diameter?

The pitch diameter (106mm) is the effective diameter where the V-belt's neutral axis runs, used for speed ratio calculations. The outside diameter is slightly larger and is the overall physical dimension of the pulley.

Is the 1610 taper lock bush included with this pulley?

This listing is for the pulley only. The required 1610 taper lock bush, which determines the shaft bore size, must be purchased separately.

What is the maximum speed rating for this SPZ106-1 pulley?

The maximum permissible speed depends on the balancing quality. For standard cast iron pulleys like this, the peripheral speed should generally not exceed 30 m/s. Always consult the manufacturer's technical data for your specific application.
