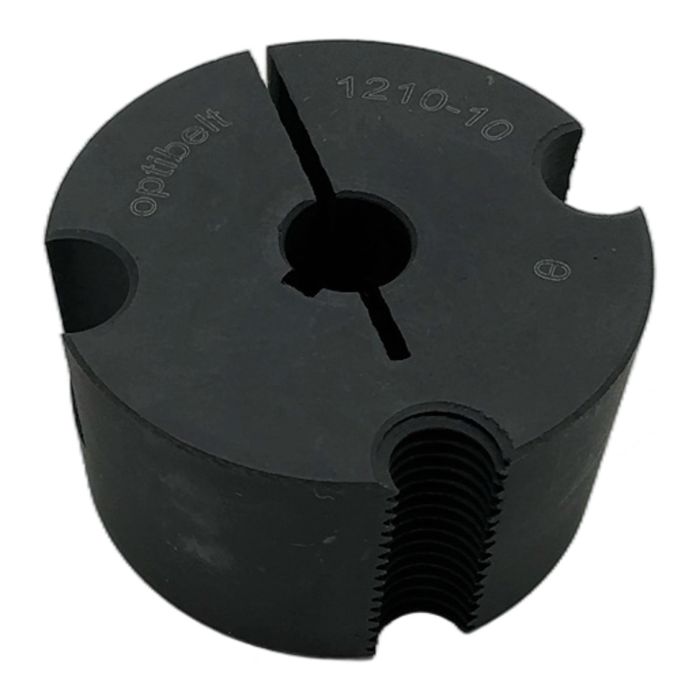

Optibelt Taper Bush 1210-10 for 10mm Shafts

Description

The Optibelt TB 1210-10 is a precision-engineered taper bush for creating a secure, backlash-free connection between a shaft and a hub component like a pulley or sprocket. This component simplifies assembly and disassembly, providing a reliable mechanical interference fit that transmits high torque while maintaining excellent concentricity.

Specifications

• Manufacturer: Optibelt
• Product Type: Taper Bush
• Bush Size: 1210
• Bore Diameter: 10 mm
• Material: High-grade Cast Iron
• Mounting: Tapered bore with grub screws

Label Info

• Brand: optibelt
• Model: 1210-10

Application

Ideal for use in a wide range of industrial power transmission applications, including conveyor systems, agricultural machinery, ventilation units, and general mechanical engineering where pulleys, sprockets, or couplings need to be mounted securely onto a 10mm shaft.

Country of Origin

This product is manufactured in Germany by Optibelt.

CO2 Impact

Choosing this reused component saves approximately 0.5 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

First, ensure the shaft and bore are clean and free of oil or grease. Slide the bush onto the shaft and the pulley/sprocket over the bush. Align the holes, insert the grub screws loosely, and then alternately tighten them to the manufacturer's recommended torque specification to ensure even clamping.

Yes, the Optibelt 1210-10 taper bush with a 10mm bore is supplied with a keyway that conforms to standard DIN 6885/1. It can be used on both keyed and un-keyed shafts, as the friction grip provides the primary torque transmission.

These bushes are typically manufactured from high-grade grey cast iron (e.g., GG25) for durability and strength. The transmissible torque for a 1210 bush on a 10mm shaft is approximately 32 Nm, but always consult the official Optibelt technical datasheet for precise values based on your application.
