Omron G3R-ODX02SN Solid State Relay

Description

The Omron G3R-ODX02SN is a high-performance, slim I/O solid-state relay designed for interfacing with PLCs and other control systems. It provides reliable, high-speed switching for DC loads without the wear and tear of mechanical components, ensuring a long operational life. Its compact design is ideal for applications requiring high-density mounting in control panels.

Specifications

• Manufacturer: Omron
• Model: G3R-ODX02SN
• Type: Solid State Relay (SSR)
• Input Voltage: 5 to 24 VDC
• Load Voltage: 5 to 48 VDC
• Maximum Load Current: 2 A
• Mounting: Pluggable (for use with P2RF series sockets)

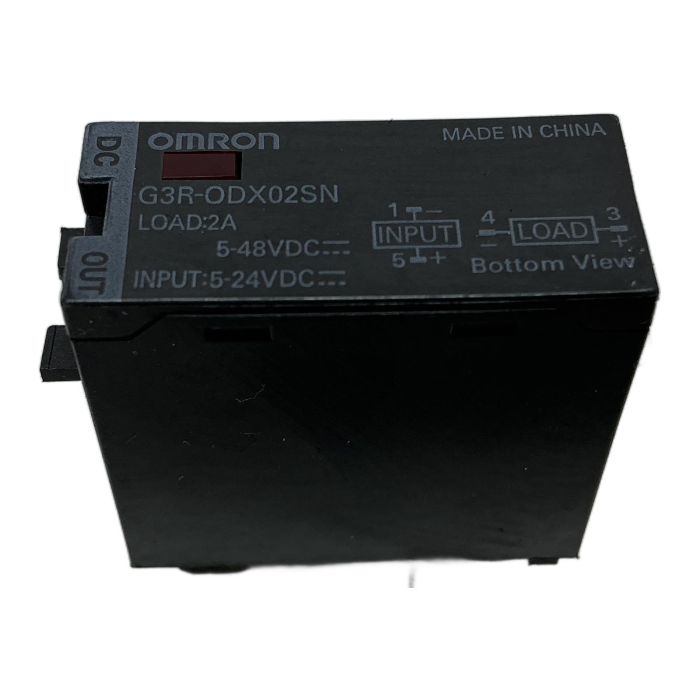

Label Info

• Brand: OMRON
• Part Number: G3R-ODX02SN
• Load: 2A, 5-48VDC
• Input: 5-24VDC

Application

This relay is commonly used in industrial automation for switching small motors, solenoids, lamps, and other DC loads. It is an excellent choice for output modules in PLC systems, control machinery, and process control applications where reliability and speed are essential.

Country of Origin

Made in China.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid the production of a new one, saving an estimated 1.0 kg of CO2. This saving is equivalent to the emissions from driving an average car for 5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of using this G3R solid-state relay over a traditional electromechanical relay?

The G3R-ODX02SN, being a solid-state relay (SSR), offers significant advantages like silent operation, much faster switching speeds, and a vastly longer service life due to the absence of moving parts. This makes it ideal for high-frequency switching applications often found in PLC systems.

Yes, absolutely. The input voltage range of 5 to 24 VDC is specifically designed to be compatible with standard PLC digital outputs (both sinking and sourcing types), requiring only a low input current to operate.

This relay is designed to plug into Omron's P2RF-series of sockets, such as the P2RF-05-E for screw terminal connections. Using the correct socket ensures a secure connection and simplifies wiring and maintenance in control panels.
