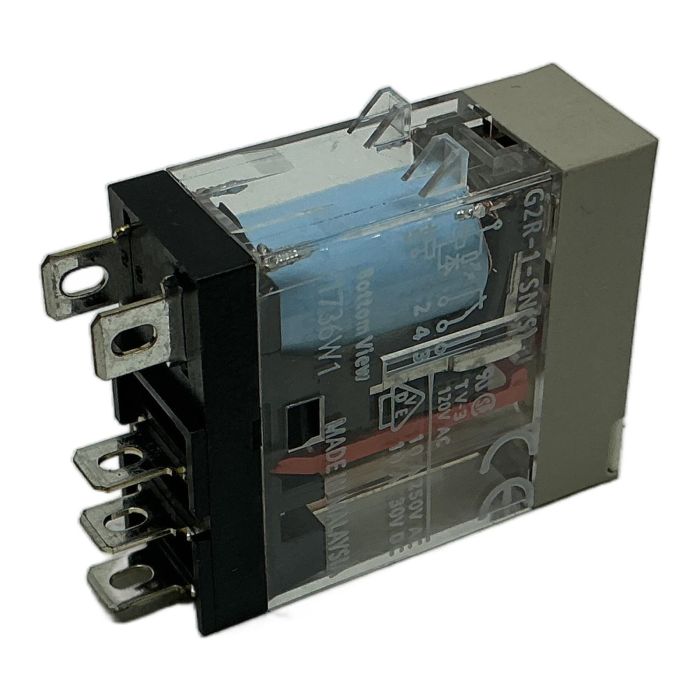

Omron G2R-1-SN(S) General Purpose Relay

Description

The Omron G2R-1-SN(S) is a compact and highly reliable general-purpose plug-in relay. Engineered for a wide variety of applications, it features a 24V DC coil and a single-pole, double-throw (SPDT) contact configuration. Its robust design, including a sealed construction and a lockable test button, makes it a preferred choice for industrial control panels, automation systems, and machinery. This relay offers excellent performance and a long service life.

Specifications

• Manufacturer: Omron
• Model: G2R-1-SN(S)
• Coil Voltage: 24V DC
• Contact Configuration: 1-Pole Double Throw (SPDT / 1 Form C)
• Contact Current Rating: 10A at 250V AC, 10A at 30V DC
• Mounting Type: Plug-in Socket
• Special Features: Lockable test button, mechanical indicator, sealed type

Label Info

• G2R-1-SN(S)
• Coil: 24V DC
• TV-3 120V AC
• 10 A 250V AC
• 10 A 30V DC

Application

This relay is ideal for use in control circuits for factory automation, building management systems, HVAC controls, and general electrical switching applications where reliability and a compact footprint are essential.

Country of Origin

Made in Malaysia.

CO2 Impact

Opting for this pre-owned component avoids the production of a new one, saving an estimated 1.0 kg of CO2. This saving is equivalent to the energy needed to charge a smartphone 120 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This relay is designed for use with standard 5-pin relay sockets, such as the Omron P2RF-05-E. Always verify the pin configuration of the socket to ensure compatibility.

When driven by a transistor or PLC output, it is highly recommended to use a freewheeling (or suppression) diode in parallel with the coil to protect the driver from inductive voltage spikes when the relay is de-energized.

The Omron G2R series is known for its durability. Mechanically, it's typically rated for over 10 million operations. The electrical life depends on the load being switched but is generally rated for at least 100,000 operations at its full rated load.
