nVent ERIFLEX 100A Single Pole Power Distribution Block

Description

The nVent ERIFLEX 563900, model BD-100A, is a high-quality single-pole power distribution block engineered for demanding industrial environments. It provides a compact, safe, and reliable method for distributing power within electrical enclosures and control panels. Its DIN rail mountable design and finger-safe cover ensure easy installation and enhanced operator safety.

Specifications

• Manufacturer: nVent ERIFLEX
• Part Number: 563900
• Model: BD-100A
• Max Current Rating: 100 A at 40 deg C
• Nominal Insulation Voltage (Ui): 500V AC/DC
• Peak Short Circuit Current (Ipk): 20 kA
• Number of Poles: 1
• Mounting: DIN Rail
• Terminal Material: Tin-plated Brass

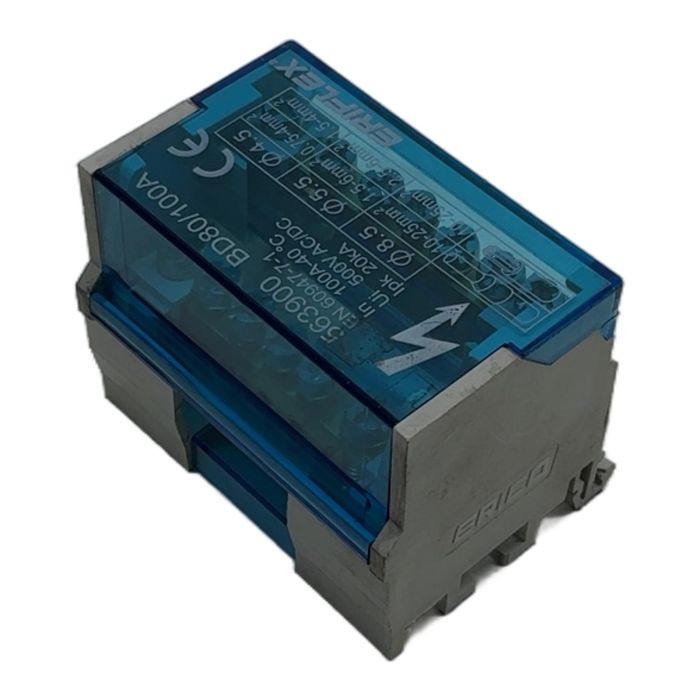

Label Info

• Standard Compliance: EN 60947-7-1
• In: 100A - 40 deg C
• Ui: 500V AC/DC
• Ipk: 20kA

Application

This distribution block is ideal for use in industrial control cabinets, automation systems, switchgear assemblies, and any application requiring a central connection point for multiple electrical circuits.

Country of Origin

This product is manufactured in France.

CO2 Impact

By choosing this refurbished component, you are avoiding 4.8 kg of CO2 emissions. This saving is comparable to the emissions produced by driving a car for 24 kilometers.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the tightening torque for the screw terminals?
According to the nVent datasheet, the recommended tightening torque varies by screw size. For the main connections (M5 screws), it's typically around 2 Nm, and for the smaller tap connections (M4 screws), it's around 1.2 Nm. Always consult the official manufacturer documentation for precise values.

Is this distribution block suitable for both copper and aluminum conductors?
The nVent ERIFLEX BD-100A is designed primarily for use with copper conductors. The terminals are tin-plated brass. Using aluminum conductors may require specific preparation and you should verify compatibility with local electrical codes and the manufacturer's guidelines.

Can multiple BD-100A blocks be clipped together?
Yes, these blocks are designed with an interlocking mechanism on the side, allowing you to securely clip multiple single-pole units together to create multi-pole distribution assemblies (e.g., for 3-phase applications) on a single DIN rail.
