nVent ERICO 100A Single Pole Distribution Block

Description

The nVent ERICO BD80/100A (Part No. 563900) is a high-quality, compact power distribution block designed for panel builders and system integrators. It provides a secure and organized method for distributing power from a single input to multiple outputs. Its DIN rail mountable design and finger-safe housing make it an ideal choice for modern electrical enclosures.

Specifications

• Manufacturer: nVent ERICO
• Type: BD80/100A
• Part Number: 563900
• Max Current Rating: 100A at 40 deg C
• Voltage Rating: 500V AC/DC
• Peak Short Circuit Current (Ipk): 20kA
• Number of Poles: 1
• Mounting: DIN Rail
• Standard Compliance: EN 60947-7-1

Label Info

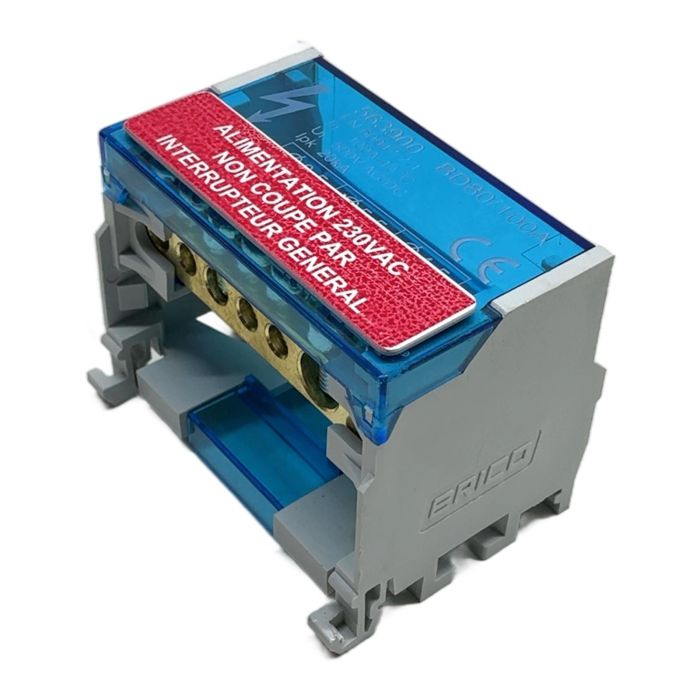

• The red label indicates a special application: "ALIMENTATION 230VAC NON COUPE PAR INTERRUPTEUR GENERAL" (230VAC Supply Not Cut by Main Switch).

Application

Perfect for use in industrial control panels, HVAC systems, power distribution units, and any application requiring reliable branching of electrical circuits.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 3.2 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.

FAQ

According to the nVent datasheet, the recommended tightening torque varies by screw size. Always consult the official manufacturer's installation sheet for the precise torque values to ensure a secure and safe connection.

Yes, the modular design of the nVent ERIFLEX power blocks allows them to be mounted side-by-side on a standard DIN rail to create multi-pole distribution systems (e.g., for 3-phase applications).

The 'Ipk' rating of 20 kA refers to the peak short-circuit withstand current. It means the block is designed to safely withstand a very high, instantaneous current surge of up to 20,000 Amperes without mechanical failure, which is critical for system safety in case of a fault.
