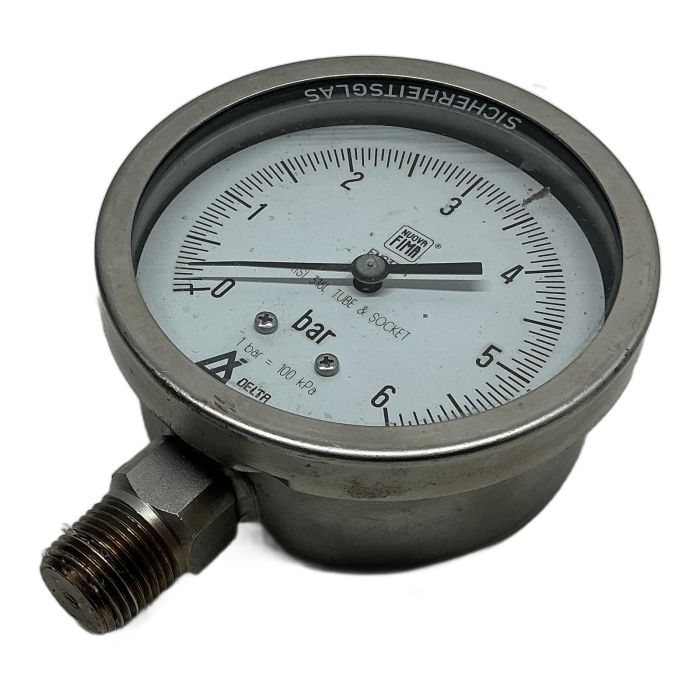

Nuova Fima Industrial Pressure Gauge

Description

This is an all-stainless steel pressure gauge from Nuova Fima, designed for accurate and reliable pressure measurement in industrial environments. With a measurement range of 0 to 6 bar, it is suitable for various process control applications. The gauge is constructed according to the EN837-1 standard, ensuring high quality and safety. The use of AISI 316L for the tube and socket provides excellent resistance to corrosive media.

Specifications

• Manufacturer: Nuova Fima
• Pressure Range: 0 to 6 bar
• Accuracy Class: 1.0
• Connection Type: Radial (Bottom Mount)
• Wetted Parts Material: AISI 316L Stainless Steel
• Case Material: Stainless Steel
• Window: Safety Glass (Sicherheitsglas)

Label Info

• Standard: EN837-1
• Unique ID: 22269
• Date of Manufacture: August 2005

Application

Ideal for use in the chemical, petrochemical, food and beverage, and pharmaceutical industries where process media compatibility and robust construction are required.

Country of Origin

Manufactured in Italy.

CO2 Impact

Opting for this reused component prevents the emission of approximately 1.5 kg of CO2, which would have been generated during the production of a new one.

Availability

This item is a tested, used part in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, this type of all-stainless steel gauge with a sealing plug on the back is designed to be fillable. Filling it with glycerine or silicone oil is recommended for applications with heavy vibration or pressure pulsations to protect the internal mechanism and stabilize the pointer.

This specification indicates that all parts in direct contact with the process fluid (the Bourdon tube and the connection socket) are made from AISI 316L stainless steel. This material offers excellent corrosion resistance, making the gauge suitable for a wide range of aggressive or corrosive media, commonly found in chemical, petrochemical, and food processing industries.

EN 837-1 is a European standard that specifies the requirements for Bourdon tube pressure gauges regarding dimensions, metrology, safety, and testing. Compliance with this standard ensures the gauge meets high-quality and safety benchmarks, guaranteeing its reliability and interchangeability for industrial process control.
