Unbranded Rear Clevis Mounting Bracket Kit

Description

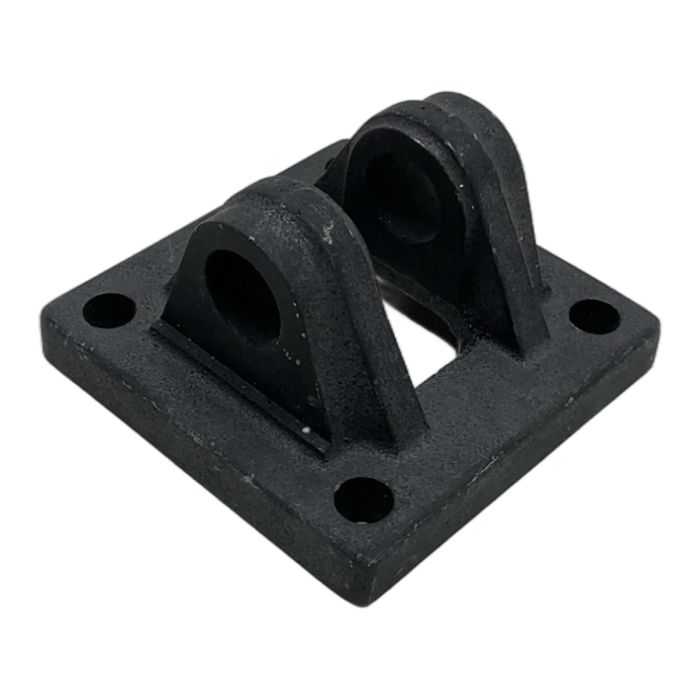

This is a complete rear clevis mounting kit for pneumatic and hydraulic cylinders. The robust steel bracket features a square flange for secure, 4-bolt surface mounting. This component allows for pivoting movement at the rear of the cylinder, essential for many automation and mechanical applications. The kit includes the mounting bracket, a high-strength clevis pin, and all necessary hardware (bolts, washers, seals) for a straightforward installation.

Specifications

• Product Type: Rear Clevis Mounting Bracket Kit
• Mounting Style: Square Flange (4-Bolt)
• Material: Painted Steel
• Included Components: Flange bracket, clevis pin, 4x bolts, washers, O-rings/seals

Application

Designed for the rear mounting of pneumatic or hydraulic cylinders in various industrial applications, including factory automation, material handling, and custom machinery. It is compatible with cylinders that have a rear eyelet and conform to standard dimensions, but verification of measurements is recommended before purchase.

CO2 Impact

Choosing this reused component over a new one avoids the emission of approximately 1.0 kg of CO2, which is associated with the manufacturing and transport of new steel parts. This small choice contributes to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What cylinder standard is this mounting bracket compatible with?

This bracket is a generic design, often compatible with cylinders following standards like ISO 15552. However, it is crucial to verify the dimensions of the flange, mounting hole spacing, clevis width, and pin diameter to ensure a perfect fit with your specific cylinder.

The load capacity depends on the material (typically steel) and the specific dimensions. As this is an unbranded component, no official load rating is provided. It should be selected based on the force output of the cylinder it is intended for, ensuring the bracket's cross-sectional areas can handle the tensile and shear stresses.

The O-rings are likely intended to be used with the clevis pin. They can act as dust seals or retainers to prevent the pin from sliding out, or to dampen slight vibrations between the pin and the cylinder eye. Their exact use may vary depending on the original application design.
