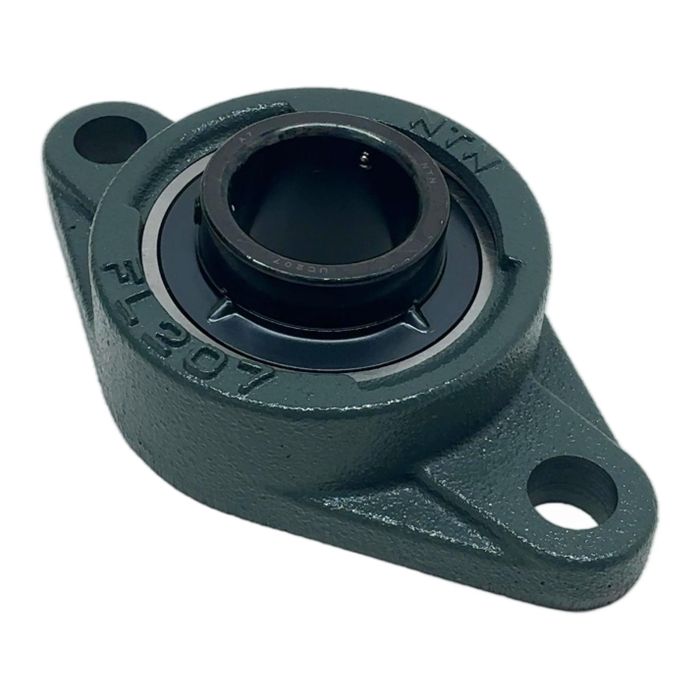

NTN UCFL207D1 2-Bolt Flange Bearing Unit

Description

The NTN UCFL207D1 is a reliable and robust two-bolt flange bearing unit, designed for applications requiring simple mounting and dependable support for rotating shafts. This unit consists of a high-quality UC207 insert bearing and a durable FL207 cast iron housing. It is engineered for high performance and long service life in a wide range of industrial environments.

Specifications

• Bore Diameter: 35 mm
• Housing Type: Two-Bolt Flange (FL207)
• Bearing Insert: UC207
• Housing Material: Cast Iron
• Locking Mechanism: Set Screw Locking
• Dynamic Load Rating: 25.7 kN
• Static Load Rating: 15.3 kN

Label Info

• Manufacturer: NTN
• Part Number: UCFL207D1
• EAN: 4547359765540

Application

This bearing unit is ideal for use in conveyor systems, agricultural machinery, food processing equipment, and general manufacturing applications where a shaft runs perpendicular to the mounting surface.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this reused bearing unit saves approximately 2.6 kg of CO2 emissions compared to manufacturing a new one, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the recommended shaft tolerance for the UCFL207D1?

For general applications with set screw locking, a shaft tolerance of h6 to h8 is recommended for a proper fit and optimal performance.

What is the maximum speed rating for this bearing unit?

The limiting speed for the NTN UCFL207D1 is typically around 4300 RPM, but this can vary based on lubrication, load, and operating conditions.

Is this unit re-lubricatable?

Yes, the FL207 housing is equipped with a grease nipple (zerk fitting), allowing for periodic re-lubrication to extend the bearing's service life.

Last Update: Friday, March 13, 2026
