NTN M-UCP205D1
In stock
Backorder allowed
Out of stock
Description / NTN M-UCP205D1

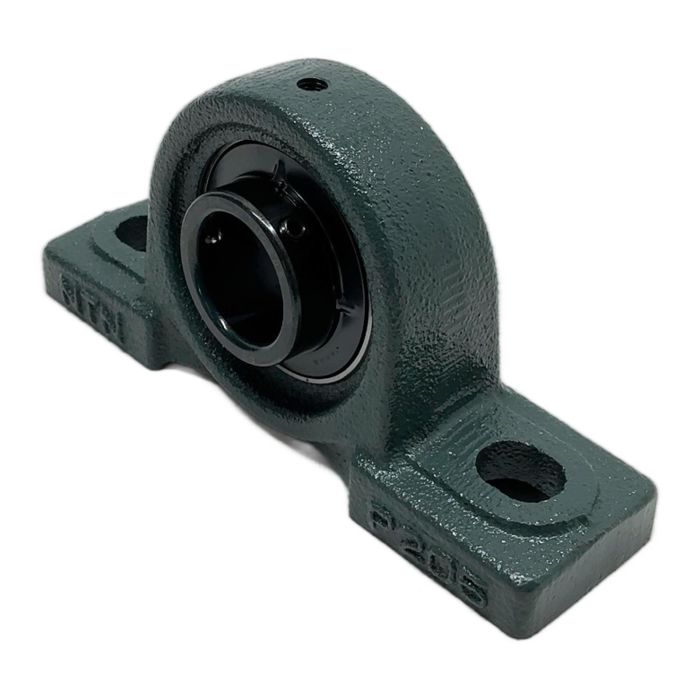

NTN M-UCP205D1 Pillow Block Bearing Unit
Description
The NTN M-UCP205D1 is a reliable and robust pillow block bearing unit designed for industrial applications requiring support for rotating shafts. This unit combines a high-quality ball bearing insert with a rugged cast iron housing, ensuring long service life and dependable performance. It is pre-lubricated and features a set screw locking system for easy and secure installation.
Specifications
- Manufacturer: NTN
- Type: M-UCP205D1
- Bore Diameter: 25 mm
- Housing Material: Cast Iron
- Bearing Insert: UC205D1
- Housing Series: P205
- Locking Mechanism: Set Screw
- Dynamic Load Rating: 14 kN
- Static Load Rating: 7.85 kN
Label Info
- Brand: NTN
- Model: M-UCP205D1
- EAN: 4547359765373
Application
Ideal for use in conveyor systems, agricultural equipment, food processing machinery, and general industrial automation where reliable shaft support is critical.
Country of Origin
Made in Japan.
CO2 Impact
Opting for this component saves approximately 1.5 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation.
Availability
This item is in stock and ready for dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
What is the recommended shaft tolerance for the NTN UCP205D1?For general applications, a shaft tolerance of h6 to h7 is recommended for the 25mm bore of the UCP205D1 to ensure a proper fit with the set screw locking mechanism.
Can this bearing be re-lubricated, and if so, what type of grease should be used?Yes, the UCP205 housing includes a grease nipple for re-lubrication. NTN recommends a high-quality lithium-based grease suitable for ball bearings.
What is the difference between the UCP205 and the UKP205 series?The main difference is the locking method. The UCP series uses set screws to lock onto the shaft, while the UKP series uses an adapter sleeve, which provides a more concentric grip and is suitable for shafts that may be slightly undersized.
PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Laatst bijgewerkt: Friday, March 13, 2026
More Information
| Item Number | M-UCP205D1 |
|---|---|
| Brands | NTN |
| HS Code | 84832000 |
| EAN | 4547359765373 |
| HS Description | Bearing housing with bearing |
| Manufacturer | NTN |
| Product Condition | Factory New |
| Packing Condition | Original Packing Packing |
