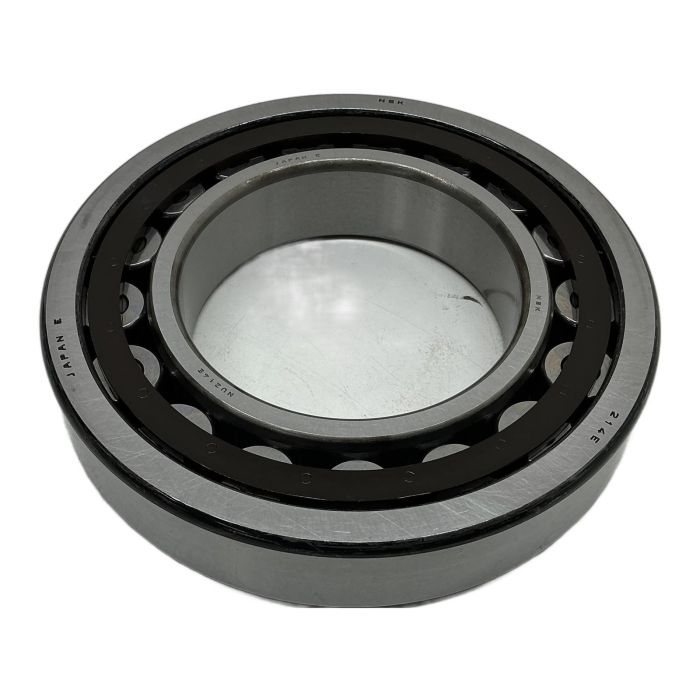

NSK NU214ET Cylindrical Roller Bearing

Description

The NSK NU214ET is a high-performance single-row cylindrical roller bearing designed for superior radial load capacity and high-speed operation. Its NU design features two integral flanges on the outer ring and a flangeless inner ring, allowing for axial displacement of the shaft relative to the housing. This makes it an ideal non-locating bearing in industrial applications such as gearboxes, pumps, and electric motors.

Specifications

• Manufacturer: NSK
• Part Number: NU214ET
• Type: Cylindrical Roller Bearing
• Bore Diameter (d): 70 mm
• Outer Diameter (D): 125 mm
• Width (B): 24 mm
• Cage Material: Polyamide (PA66)
• Internal Design: E - Enhanced Capacity
• Number of Rows: 1

Label Info

• Brand: NSK
• Model: NU214ET
• Country of Origin: Japan

Application

This bearing is widely used in various industrial sectors, including manufacturing, automotive, and power generation. It is particularly suited for applications that experience high radial forces and require axial shaft movement to compensate for thermal expansion.

Country of Origin

This product is manufactured by NSK Ltd. in Japan, ensuring high standards of quality and precision engineering.

CO2 Impact

Opting for this pre-owned bearing instead of a new one saves approximately 2.2 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'E' suffix in NSK bearings typically indicates an optimized internal design for 'Extra' or 'Enhanced' load capacity compared to standard designs. The 'T' suffix refers to the cage material, which in this case is a molded polyamide (PA66) resin cage, known for its good sliding properties and suitability for high-speed applications.

No, the NU design is a non-locating bearing. It has two flanges on the outer ring and a flangeless inner ring. This configuration allows it to accommodate axial displacement of the shaft relative to the housing in both directions, but it cannot support any axial load. For axial load support, it must be used in conjunction with a locating bearing, such as an NUP type or an angular contact bearing.

The appropriate lubrication depends on the operating speed, load, and temperature of the application. Both grease and oil lubrication are suitable for the NSK NU214ET. For general-purpose applications, a high-quality lithium-based grease is common. For very high-speed or high-temperature operations, a circulating oil lubrication system may be required to provide adequate cooling and lubrication. Always consult your machinery's maintenance manual for specific recommendations.
