NSK 6302DDUCM NS7S Deep Groove Ball Bearing

Description

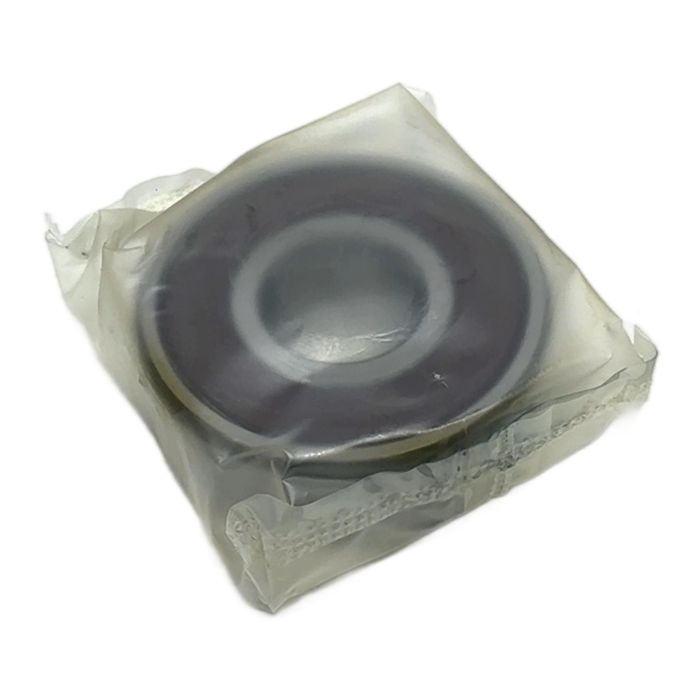

This NSK 6302DDUCM NS7S is a premium single-row deep groove ball bearing, engineered for high performance and reliability. It is a versatile component suitable for a wide range of industrial applications, especially those requiring low noise and excellent sealing. The bearing is new and comes in its original, sealed inner packaging within the factory box.

Specifications

• Manufacturer: NSK
• Type: Deep Groove Ball Bearing
• Bore Diameter: 15 mm
• Outside Diameter: 42 mm
• Width: 13 mm
• Seals: DDU (Contact seals on both sides)
• Internal Clearance: CM (Electric motor quality)
• Grease: NS7S (Special grease fill)

Label Info

• Part Number: 6302DDUCM NS7S

Application

The 'DDU' designation confirms that the bearing is sealed on both sides with high-performance contact seals, providing superior protection against dust and moisture ingress. The 'CM' clearance is specifically tailored for electric motor applications, ensuring quiet operation and optimal performance. This makes it an ideal choice for electric motors, pumps, fans, and other general machinery.

Country of Origin

Made in Japan.

CO2 Impact

By choosing this component, you are actively contributing to a circular economy. Re-using this bearing saves approximately 0.16 kg of CO2 compared to producing a new one. This saving is equivalent to charging a smartphone over 19 times.

Availability

This product is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'DDUCM NS7S' suffix mean for this NSK bearing?

Answer
'DDU' indicates that the bearing is equipped with contact rubber seals on both sides, offering excellent protection against contamination. 'CM' specifies a special radial internal clearance designed for electric motors, ensuring quieter operation. 'NS7S' refers to a specific type and fill of high-performance grease, also suited for motor applications.

Question?
Can I use this bearing in a high-speed application?

Answer
While the 6302 bearing is versatile, the 'DDU' contact seals introduce more friction than open or shielded bearings. This makes it ideal for moderate speeds where contamination is a concern. For very high-speed applications, an open (no suffix) or shielded (ZZ) version with a different clearance (like C3) might be more appropriate. Always consult the manufacturer's speed rating for your specific load conditions.

Question?
Is this bearing interchangeable with an SKF 6302-2RSH or a FAG 6302-2RSR?

Answer
Yes, dimensionally it is a direct interchange. The basic dimensions (15mm bore, 42mm outer diameter, 13mm width) are standardized. The suffixes indicate similar features: '2RSH' from SKF and '2RSR' from FAG also denote contact seals on both sides. While grease and internal clearance specifications might have minor differences, for most general applications, they are considered functional equivalents.
