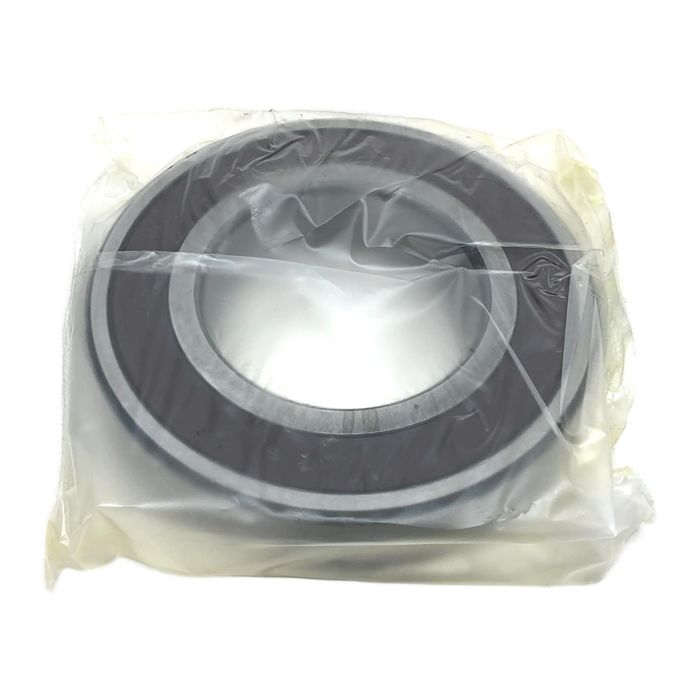

NSK 6212DDUCM Deep Groove Ball Bearing

Description

This is a single-row deep groove ball bearing, model 6212DDUCM, from leading manufacturer NSK. It is designed for high precision and durability in a wide range of industrial applications. The 'DDU' designation indicates that it is equipped with contact seals on both sides, providing excellent protection against dust, dirt, and moisture while retaining lubricant. The 'CM' clearance is specifically optimized for electric motor applications, ensuring quiet and efficient performance.

Specifications

• Manufacturer: NSK
• Part Number: 6212DDUCM NS7S
• Type: Single-Row Deep Groove Ball Bearing
• Bore Diameter (d): 60 mm
• Outer Diameter (D): 110 mm
• Width (B): 22 mm
• Seals: DDU - Contact rubber seals on both sides
• Clearance: CM - Radial internal clearance for electric motors
• Grease: NS7S (NS Hi-Lube)

Label Info

• Brand: NSK Bearings
• Model: 6212DDUCM
• Codes: NS7S, 602

Application

This bearing is exceptionally well-suited for applications requiring low noise and low vibration, such as electric motors, pumps, gearboxes, and general machinery. The robust sealing makes it suitable for environments with moderate levels of contamination.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this reused NSK bearing, you help avoid the 1.58 kg of CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What does the 'DDUCM' suffix mean for this NSK bearing?

The 'DDU' suffix indicates that the bearing is equipped with contact rubber seals on both sides, providing excellent protection against contaminants and retaining grease. The 'CM' suffix denotes a special radial internal clearance specifically designed for electric motor applications, ensuring quiet and efficient operation.

NS7S refers to NS Hi-Lube grease, a standard polyurea-based grease. It has a good operating temperature range, typically from -40 deg C to +150 deg C. While suitable for many standard and electric motor applications, for extreme high-temperature environments, a different grease type might be recommended. Always check your application's specific requirements.

Yes, in many cases, a DDU sealed bearing can replace a ZZ shielded or an open bearing of the same size (6212). The DDU seals offer superior protection against dust and moisture. However, be aware that contact seals (DDU) have slightly higher friction and lower speed limits than non-contact shields (ZZ) or open bearings. For very high-speed applications, this should be taken into consideration.
