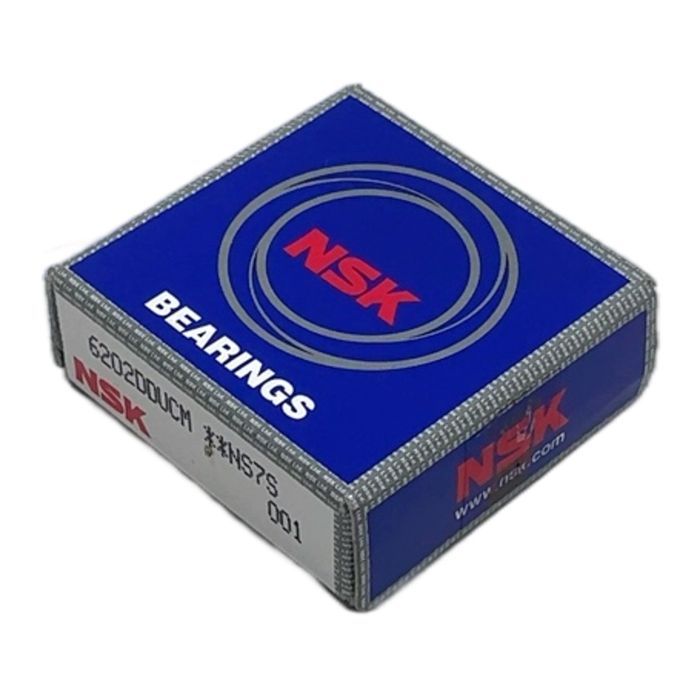

NSK 6202DDUCM NS7S Deep Groove Ball Bearing

Description

The NSK 6202DDUCM NS7S is a high-precision, single-row deep groove ball bearing designed for demanding applications, particularly in electric motors. It features contact seals on both sides for excellent protection against dust and moisture, extending its service life. The CM clearance is specifically for electric motor applications, ensuring low noise and vibration levels. This bearing is pre-lubricated with NS7S grease for optimal performance.

Specifications

• Bore Diameter: 15 mm
• Outside Diameter: 35 mm
• Width: 11 mm
• Seals: DDU - Contact seals on both sides
• Clearance: CM - Special radial internal clearance for electric motors
• Grease: NS7S
• Basic Dynamic Load Rating: 7.65 kN
• Basic Static Load Rating: 3.6 kN

Label Info

• Manufacturer: NSK Ltd.
• Part Number: 6202DDUCM NS7S

Application

This bearing is ideal for use in small to medium-sized electric motors, fans, pumps, power tools, and other applications requiring low noise and reliable operation.

Country of Origin

Made in Japan

CO2 Impact

Reusing this component saves approximately 0.09 kg of CO2, equivalent to the energy needed to charge a smartphone over 10 times. Choosing refurbished parts contributes to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'DDUCM' suffix mean on this NSK bearing?

The suffix provides key specifications. 'DDU' indicates that the bearing has contact rubber seals on both sides, offering excellent protection against contamination. 'CM' signifies a special internal clearance designed for electric motor applications, which helps to reduce operational noise and vibration.

NS7S is a low-noise, low-torque grease primarily designed for standard operating temperatures in electric motors, typically up to around 120 deg C. For applications with consistently higher temperatures, a different grease type might be recommended. Always consult the manufacturer's datasheet for specific temperature limits.

Yes, while optimized for electric motors, a CM clearance bearing can be used in other applications. It has a slightly larger internal clearance than a 'CN' (Normal) bearing. This can be beneficial in applications with temperature differentials between the inner and outer rings or where press-fits are used. However, for precision applications like machine tool spindles, a different clearance class would be required.
