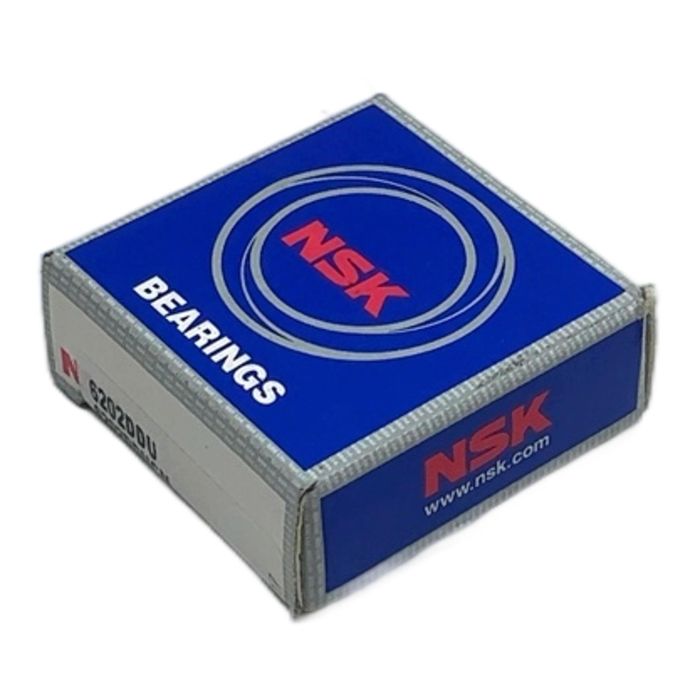

NSK 6202DDUCM Deep Groove Ball Bearing

Description

The NSK 6202DDUCM is a precision-engineered single-row deep groove ball bearing designed for high reliability and long operational life. It is particularly suited for applications such as electric motors, pumps, and gearboxes where low noise and low vibration are critical. The integrated contact seals provide excellent protection against dust and moisture, retaining lubricant and ensuring consistent performance.

Specifications

• Bore Diameter (d): 15 mm
• Outer Diameter (D): 35 mm
• Width (B): 11 mm
• Seals: DDU - Contact seals on both sides
• Internal Clearance: CM - Special clearance for electric motors
• Material: High-quality bearing steel

Label Info

• Model: 6202DDUCM
• Part Code: D NS7S5

Application

Ideal for use in small to medium-sized electric motors, fans, power tools, household appliances, and other general-purpose machinery requiring reliable rotational support.

Country of Origin

This product is proudly manufactured in Poland.

CO2 Impact

Opting for this component helps avoid approximately 0.09 kg of CO2 emissions compared to manufacturing a new one, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What does the 'DDUCM' suffix mean on this NSK 6202 bearing?

The 'DDU' signifies that the bearing is fitted with two contact rubber seals, one on each side, providing excellent protection against contaminants and retaining grease. The 'CM' indicates a special internal clearance designed for electric motors, ensuring quiet operation and optimal performance under typical motor operating conditions.

Can I use a standard 6202-2RS bearing as a direct replacement for this 6202DDUCM?

While a standard 6202-2RS has the same dimensions and seal type, the 'CM' clearance is specific to electric motor applications. Using a bearing with standard clearance (CN) might result in higher operating noise or reduced lifespan in an electric motor. For non-motor applications, it is often interchangeable, but for its intended use, sticking with the 'CM' clearance is highly recommended.

What type of grease is used in this bearing, and does it require re-lubrication?

This bearing is lubricated for life from the factory with a high-quality grease suitable for a wide range of temperatures and speeds, indicated by the 'D NS7S5' code. The DDU seals are designed to retain this grease for the entire lifespan of the bearing, so no maintenance or re-lubrication is required.
