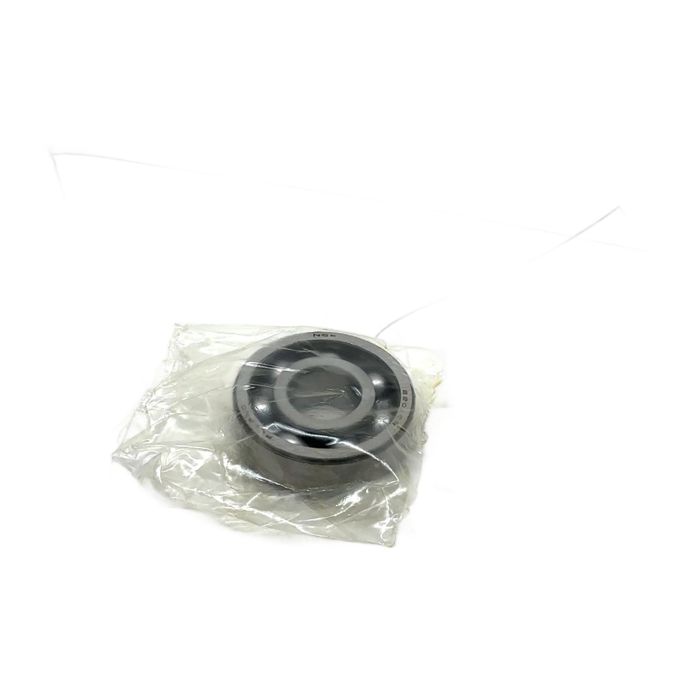

NSK 6201C3 Deep Groove Ball Bearing

Description

The NSK 6201C3 is a versatile and reliable single-row deep groove ball bearing. It is engineered for high performance in a variety of industrial applications. The 'C3' designation indicates that it has a greater internal clearance than standard bearings, making it ideal for high-speed operation or applications with significant temperature differentials. This component is supplied new in its original, sealed packaging.

Specifications

• Bore Diameter (d): 12 mm
• Outer Diameter (D): 32 mm
• Width (B): 10 mm
• Internal Clearance: C3 (Greater than Normal)
• Material: Bearing Steel
• Sealing: Open type (no seals)
• Limiting Speed (Grease): 22000 rpm
• Limiting Speed (Oil): 26000 rpm

Label Info

• Manufacturer: NSK
• Part Number: 6201C3
• Alternative Part Number: 6201C3E

Application

This bearing is commonly used in electric motors, pumps, gearboxes, automotive applications, and general machinery where reliability and high-speed capability are required.

Country of Origin

Made in Poland.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid the emission of approximately 0.06 kg of CO2. This saving is equivalent to the energy needed to charge a smartphone around 7 times.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The C3 suffix denotes that the bearing has an internal radial clearance that is greater than the 'Normal' (CN) standard. This extra space allows for thermal expansion of the shaft and housing at higher operating temperatures or speeds, preventing the bearing from seizing.

As an open-type bearing, it is typically delivered with a light preservative oil but requires proper lubrication (grease or oil) upon installation, specific to the application's requirements.

Yes, the 6201C3 is an excellent choice for electric motor applications. Its C3 clearance accommodates the heat generated by the motor, and its design is suitable for the high rotational speeds often found in such equipment.
