NSK 6022DDUCM AS2S Deep Groove Ball Bearing

Description

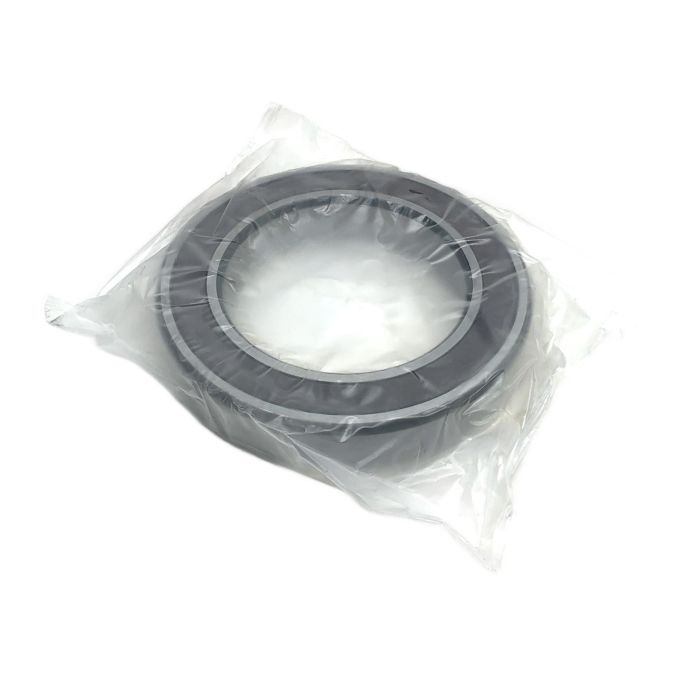

This is a single-row deep groove ball bearing, model 6022DDUCM AS2S, manufactured by NSK. It is designed for high performance and durability in a wide range of industrial applications, particularly in electric motors where low noise and vibration are critical. The bearing comes in its original packaging and is factory sealed.

Specifications

• Manufacturer: NSK
• Type: 6022DDUCM AS2S
• Category: Deep Groove Ball Bearing
• Bore Diameter (d): 110 mm
• Outside Diameter (D): 170 mm
• Width (B): 28 mm
• Seals: DDU (Contact Seals on Both Sides)
• Internal Clearance: CM (For Electric Motors)
• Grease: AS2S (Kyodo Yushi Alvania S2)

Label Info

• NSK BEARINGS
• 6022DDUCM AS2S
• Made in Japan

Application

Deep groove ball bearings are highly versatile and can accommodate radial and axial loads in both directions. This specific model with CM clearance and DDU seals is ideal for electric motors, fans, pumps, and other machinery requiring reliable operation and protection against contamination.

Country of Origin

This NSK bearing is proudly Made in Japan, ensuring high standards of quality and precision engineering.

CO2 Impact

Choosing this reused component prevents the emission of approximately 4.2 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a standard car for 21 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

'DDU' indicates that the bearing is equipped with contact rubber seals on both sides, providing excellent protection against dust and moisture. 'CM' refers to a special internal clearance for electric motors, which ensures low noise and vibration. 'AS2S' specifies the type of grease used, in this case, Kyodo Yushi Alvania S2.

While DDU contact seals offer superior protection, they also generate more friction than non-contact seals, which can limit the maximum speed. This bearing is optimized for moderate speeds typical of electric motors. For very high-speed applications, a bearing with non-contact (VV) seals might be more appropriate.

For a bearing with a 110mm bore, proper mounting is crucial. It is recommended to use a bearing heater to evenly heat the bearing to around 80-90 deg C above the shaft temperature before mounting. This allows it to slide onto the shaft without applying force to the rolling elements, preventing damage.
