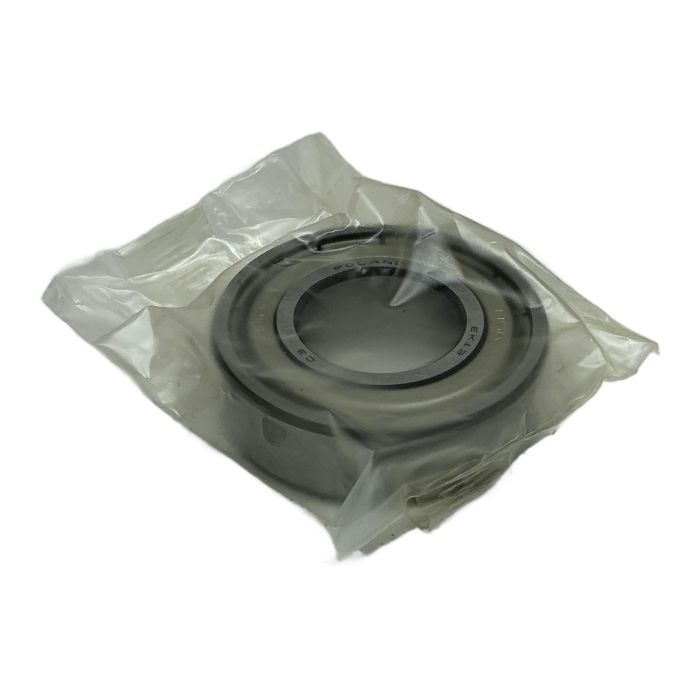

NSK 6004ZZC3 Deep Groove Ball Bearing

Description

The NSK 6004ZZC3 is a precision-engineered single-row deep groove ball bearing designed for reliability and performance in various industrial applications. Its robust construction ensures it can handle high rotational speeds while supporting both radial and axial loads. This bearing is supplied in its original, unopened packaging.

Specifications

• Manufacturer: NSK
• Part Number: 6004ZZC3
• Dimensions: 20mm (Bore) x 42mm (Outer Diameter) x 12mm (Width)
• Shields: Double-sided metal shields (ZZ) for contaminant protection
• Internal Clearance: C3 (Greater than standard clearance)
• Material: High-carbon chromium bearing steel

Label Info

• Model: 6004ZZC3, 6004ZZC3E
• Grease Code: D NS7S5

Application

Commonly used in electric motors, pumps, gearboxes, automotive applications, and general machinery where high speeds and reliability are crucial.

Country of Origin

Made in Poland.

CO2 Impact

Opting for this component helps avoid the CO2 emissions associated with new production. This single bearing represents an estimated saving of 0.14 kg of CO2.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'C3' suffix in 6004ZZC3 mean for my application?

C3 indicates a radial internal clearance greater than standard (CN). This is beneficial in applications where the bearing is subject to a press fit on the shaft or in the housing, or where there are significant temperature differences between the inner and outer rings, as it prevents the bearing from seizing under load.

The 'ZZ' suffix denotes non-contact metal shields on both sides. They are excellent for retaining grease and protecting against larger solid contaminants. However, for environments with fine dust, high moisture, or direct water spray, a bearing with contact rubber seals (suffix 2RS) would provide superior protection.

This bearing comes pre-lubricated from the factory with a specific grease (indicated by the NS7S5 code). While it's technically possible to wash out the old grease and re-lubricate, it's not recommended as it can introduce contaminants and may not be compatible with the original cage material. For optimal performance and lifespan, it's best to use the bearing as supplied.
