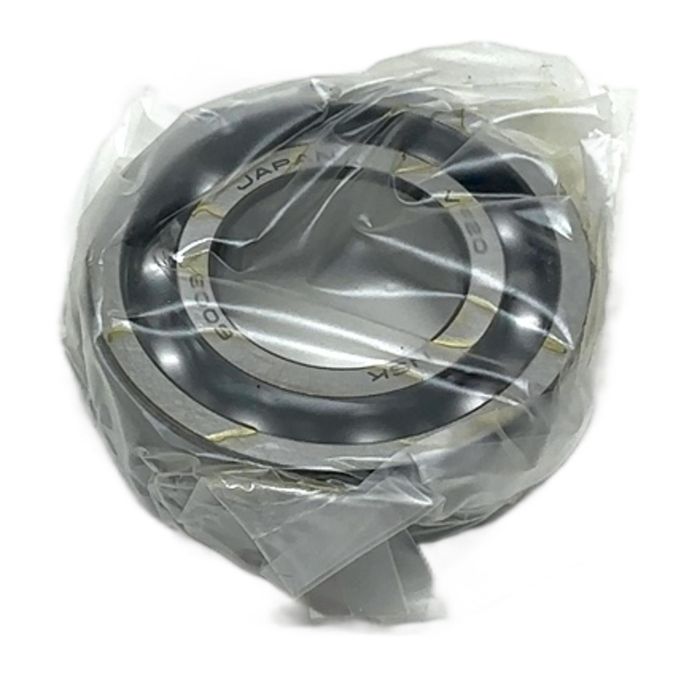

NSK 6003CM Deep Groove Ball Bearing

Description

The NSK 6003CM is a high-precision, single-row deep groove ball bearing designed for reliability and performance. As an open-type bearing, it is intended for applications where it can be lubricated in-situ or where the operating environment is clean. The 'CM' suffix designates a special clearance and noise level characteristic, making it particularly suitable for electric motor applications.

Specifications

• Bore Diameter (d): 17 mm
• Outer Diameter (D): 35 mm
• Width (B): 10 mm
• Bearing Type: Open (No Seals/Shields)
• Radial Internal Clearance: CM (Normal for Electric Motors)
• Material: High Carbon Chromium Bearing Steel
• Cage Material: Steel
• Limiting Speed (Grease): 18000 rpm
• Limiting Speed (Oil): 22000 rpm

Label Info

• Manufacturer: NSK Ltd.
• Model: 6003CM

Application

This bearing is ideal for a wide range of applications, including electric motors, pumps, fans, gearboxes, and general machinery requiring high-speed rotation and low noise.

Country of Origin

Made in Japan

CO2 Impact

Choosing this repurposed bearing saves approximately 0.08 kg of CO2 compared to manufacturing a new one. This seemingly small amount is equivalent to the energy needed to fully charge a smartphone over 9 times, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'CM' suffix indicates a specific internal clearance and raceway finish designed for electric motor applications. This results in lower noise and vibration levels compared to standard clearance bearings.

No, as an open-type bearing, the 6003CM is typically supplied with a light preservative oil to prevent corrosion. It must be lubricated with appropriate grease or oil according to the application's requirements before and during operation.

It is not recommended. Open bearings like the 6003CM offer no protection against contaminants. For dusty, dirty, or wet environments, a sealed (2RS) or shielded (ZZ) version of the 6003 bearing should be used to protect the internal components and extend service life.
