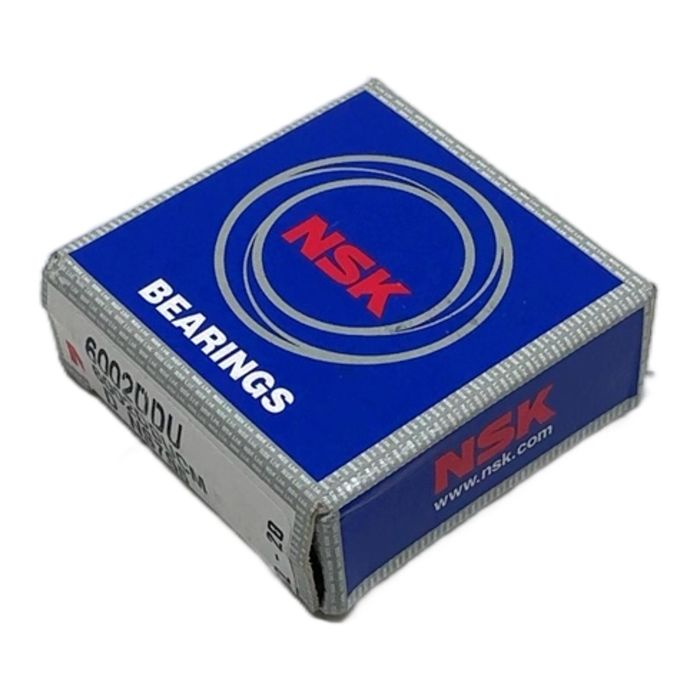

NSK 6002DDUCM NS7S5 Deep Groove Ball Bearing

Description

This is a single-row deep groove ball bearing, model 6002DDUCM NS7S5, from the renowned manufacturer NSK. It comes new in its original packaging. This bearing is designed for high-speed operation and can support both radial and axial loads. The integrated DDU seals provide excellent protection against contamination, extending the service life of the component, while the CM clearance makes it particularly suitable for electric motor applications.

Specifications

• Manufacturer: NSK
• Part Number: 6002DDUCM NS7S5
• Type: Single-Row Deep Groove Ball Bearing
• Bore Diameter: 15 mm
• Outer Diameter: 32 mm
• Width: 9 mm
• Seals: DDU - Contact rubber seals on both sides
• Internal Clearance: CM - Special radial internal clearance for electric motors
• Grease: NS7S5 - Lubricated with Widelemp DS2-7S grease

Label Info

• Model: 6002DDUCM
• Suffix Code: D NS7S5

Application

Ideal for use in small electric motors, gearboxes, pumps, and other general industrial machinery where reliability and protection from contaminants are critical.

Country of Origin

Made in Poland.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid 0.06 kg of CO2 emissions associated with the production of a new part.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

DDU seals are contact seals that ride on the inner ring, offering maximum protection against contamination but with slightly higher friction. VV seals are non-contact seals, providing lower friction and higher speed capabilities but with less protection against fine dust and liquids.

The CM suffix indicates a specific radial internal clearance range that is tighter than standard CN clearance. It is optimized for electric motor applications to reduce noise and vibration during operation.

The NS7S5 suffix corresponds to Widelemp DS2-7S grease, which has an operating temperature range of -40 to +150 deg Celsius. It is suitable for many high-temperature applications, but always check your specific requirements.
