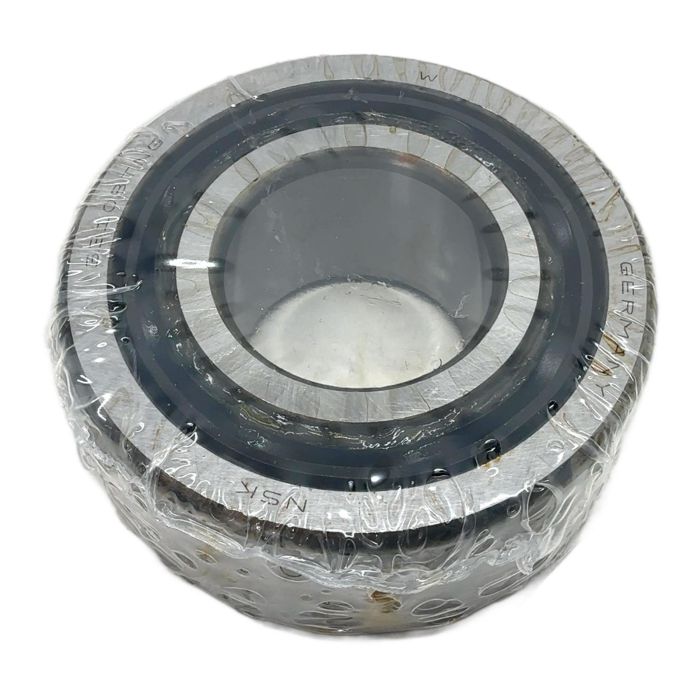

NSK 3310BTNG Double Row Angular Contact Ball Bearing

Description

The NSK 3310BTNG is a high-performance double row angular contact ball bearing designed for applications requiring high rigidity and the ability to handle combined radial and axial loads. Manufactured in Germany, this bearing ensures superior quality and reliability. Its 30-degree contact angle and polyamide cage make it suitable for high-speed operations.

Specifications

• Bore Diameter: 50 mm
• Outside Diameter: 110 mm
• Width: 44.4 mm
• Contact Angle: 30 degrees
• Cage Material: Polyamide (TN)
• Design: Double Row, Universal Matching (G)

Label Info

• Manufacturer: NSK
• Type: 3310BTNG
• Additional Code: AR3N5

Application

This bearing is commonly used in industrial machinery such as pumps, compressors, gearboxes, and machine tool spindles where load carrying capacity and rotational accuracy are critical.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused bearing saves approximately 3.66 kg of CO2 compared to a new one, contributing to a more sustainable industrial process.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The suffix denotes specific features of the bearing. 'B' indicates a 30-degree contact angle. 'TN' specifies a polyamide cage, which is lightweight and suitable for high speeds. 'G' stands for universal matching, meaning it can be mounted in pairs without special ordering.

The polyamide (TN) cage has a continuous operating temperature limit of approximately 120 deg C. For applications exceeding this temperature, a bearing with a steel cage would be more appropriate.

The NSK 3310BTNG can be lubricated with either grease or oil. The choice depends on the operating speed, temperature, and load. For most general applications, a high-quality lithium-based grease is sufficient.
