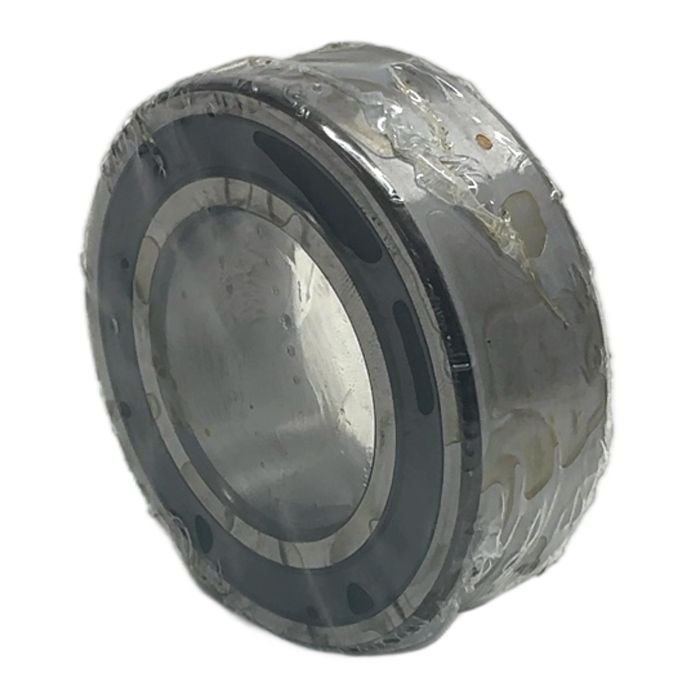

NSK Double Row Angular Contact Ball Bearing 50x90x30.2mm 3210B-2RSRTNG

Description

This is a high-quality double row angular contact ball bearing, model 3210B-2RSRTNG, from the renowned manufacturer NSK. It is designed to accommodate combined radial and axial loads in both directions. The bearing features rubber seals on both sides for enhanced protection against contaminants, ensuring a long service life. This specific model is made in Germany, guaranteeing excellent craftsmanship and material quality.

Specifications

• Manufacturer: NSK
• Type: Double Row Angular Contact Ball Bearing
• Model: 3210B-2RSRTNG
• Inside Diameter: 50 mm
• Outside Diameter: 90 mm
• Width: 30.2 mm
• Seals: 2RS - Contact seals on both sides
• Cage Material: TNG - Polyamide

Label Info

• Part Number: 3210B-2RSRTNG
• Additional Codes: AR3N5, 105

Application

Ideal for use in pumps, compressors, gearboxes, and other industrial machinery where rigid axial guidance and the ability to handle combined loads are required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused industrial part, you are contributing to a circular economy and have helped avoid 1.54 kg of CO2 emissions compared to a new production. This is equivalent to the energy needed to charge a smartphone over 180 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'B' indicates this is a second generation design for double row angular contact ball bearings, often with a 30-degree contact angle. '2RS' means it has contact-type rubber seals on both sides to protect against dust and moisture. 'TNG' refers to the cage material, which is a snap-type, glass-fibre reinforced polyamide 6.6 cage.

No, double row angular contact ball bearings like the 3210B are rigid and cannot accommodate any angular misalignment between the shaft and housing. Proper alignment during installation is critical for ensuring optimal performance and service life.

This bearing is designed to handle combined loads, meaning it can support both radial and axial loads in both directions. It is particularly suitable for applications where rigid axial guidance is required.
