NSK 23240CE4S11 Spherical Roller Bearing

Description

The NSK 23240CE4S11 is a high-performance spherical roller bearing designed to withstand the most demanding industrial applications. It features a robust design with two rows of rollers, allowing it to accommodate heavy radial loads and axial loads in both directions. The S11 suffix denotes special heat stabilization, enabling the bearing to operate reliably at temperatures up to 200 degrees Celsius.

Specifications

• Manufacturer: NSK
• Part Number: 23240CE4S11
• Type: Spherical Roller Bearing
• Bore Diameter: 200 mm
• Outer Diameter: 360 mm
• Width: 128 mm
• Cage Type: Steel Cage (C)
• Features: Outer ring with oil groove and holes (E4), Heat stabilized (S11)

Label Info

• Lot No: 206292
• Plant No: 030045 (Fukushima Plant)

Application

This bearing is ideal for use in heavy-duty machinery such as continuous casters, vibratory machinery, and equipment in paper mills, mining, and construction where high loads and potential misalignment are present.

Country of Origin

Manufactured by NSK Ltd. in Japan.

CO2 Impact

Opting for this component saves approximately 100.8 kg of CO2 compared to producing a new one. This is a sustainable choice for your maintenance needs.

Availability

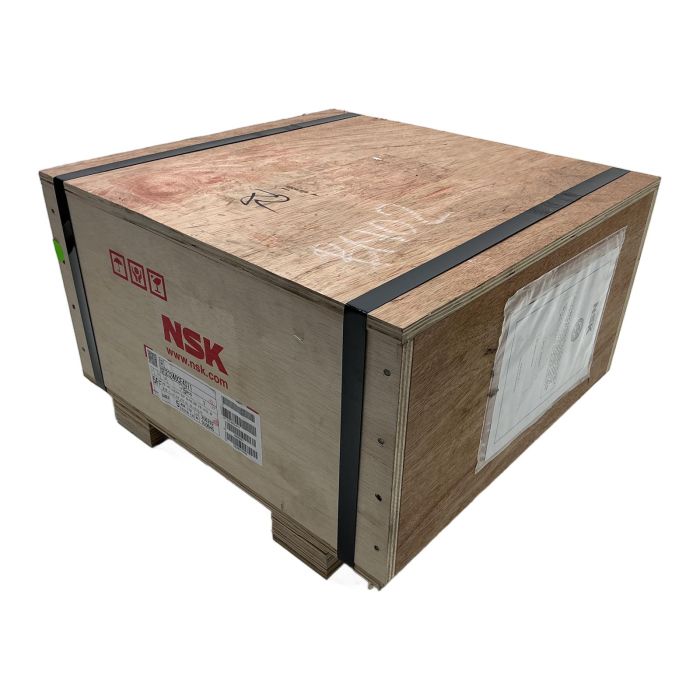

This item is in stock and ready for immediate dispatch. It comes in its original, sealed wooden crate. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'S11' suffix in the part number 23240CE4S11 signify?

The 'S11' suffix indicates a special heat treatment applied to the bearing rings. This stabilization process allows the bearing to operate reliably at temperatures up to 200 degrees Celsius without significant dimensional changes.

Is this bearing suitable for applications with high misalignment?

Yes, absolutely. As a spherical roller bearing, its internal design with two rows of symmetrical rollers and a common sphered raceway in the outer ring allows it to accommodate both static and dynamic misalignment.

What type of lubrication is recommended for this bearing, especially at higher operating temperatures?

For high-temperature operation near its 200 deg C limit, a high-quality synthetic oil or grease with a high viscosity index and excellent thermal stability is required. Always consult the machinery manufacturer's guide and NSK's lubrication specifications for the specific application to ensure optimal performance and service life.
