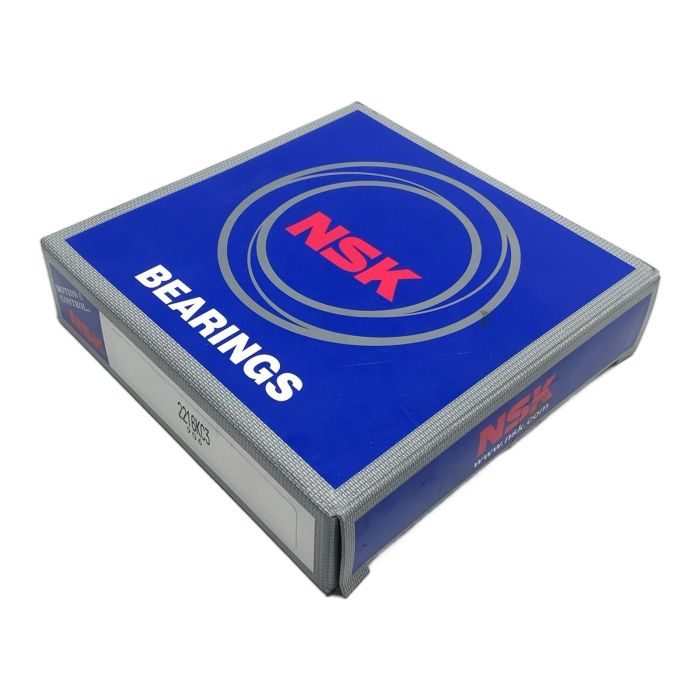

NSK 2216KC3 Self-Aligning Ball Bearing

Description

The NSK 2216KC3 is a high-performance self-aligning ball bearing designed to accommodate misalignment between the shaft and housing. It features two rows of balls and a common sphered raceway in the outer ring, allowing for angular adjustments. This specific model includes a tapered bore for mounting with an adapter sleeve and C3 internal clearance, which is suitable for applications with higher speeds or temperature variations.

Specifications

• Inner Diameter (d): 80 mm
• Outer Diameter (D): 140 mm
• Width (B): 33 mm
• Bore Type: Tapered (1:12)
• Clearance: C3 (Greater than Normal)
• Basic Dynamic Load Rating: 58.5 kN
• Basic Static Load Rating: 23.2 kN

Label Info

• Brand: NSK
• Model: 2216KC3
• Origin: Made in Japan

Application

Ideal for use in agricultural machinery, conveyors, paper mills, and other industrial equipment where shaft deflection or mounting errors are expected.

Country of Origin

Made in Japan.

CO2 Impact

By choosing this new old stock bearing, you prevent the emission of approximately 4.6 kg of CO2. This is equivalent to the carbon captured by planting a tree or driving 23 kilometers in a standard car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' indicates a tapered bore (1:12 taper), which requires an adapter sleeve for mounting on a cylindrical shaft. The 'C3' denotes an internal radial clearance that is greater than 'Normal', making it suitable for applications involving high speeds, temperature gradients, or interference fits.

For a shaft diameter of 75mm, the recommended adapter sleeve is an H316. Always verify the correct sleeve for your specific shaft size according to the manufacturer's handbook.

While the C3 clearance itself does not dictate a specific lubricant, the application's operating speed and temperature do. It is crucial to select a grease or oil that matches the operational parameters (DN value) to ensure optimal performance and bearing life.
