NSK 21316EAE4 Spherical Roller Bearing

Description

The NSK 21316EAE4 is a high-quality spherical roller bearing designed to handle heavy radial and axial loads in applications prone to misalignment or shaft deflections. This robust bearing, with its 80mm bore diameter, is engineered for reliability and long service life in demanding industrial environments such as mining, construction, and manufacturing machinery. The pressed steel cage ensures high strength and durability, even under harsh conditions.

Specifications

• Manufacturer: NSK
• Type Number: 21316EAE4
• Inner Diameter: 80 mm
• Outer Diameter: 170 mm
• Width: 39 mm
• Cage Material: Pressed Steel
• Bore Type: Cylindrical
• Suffix E4: Lubrication groove and holes in the outer ring
• Weight: Approx. 4.9 kg

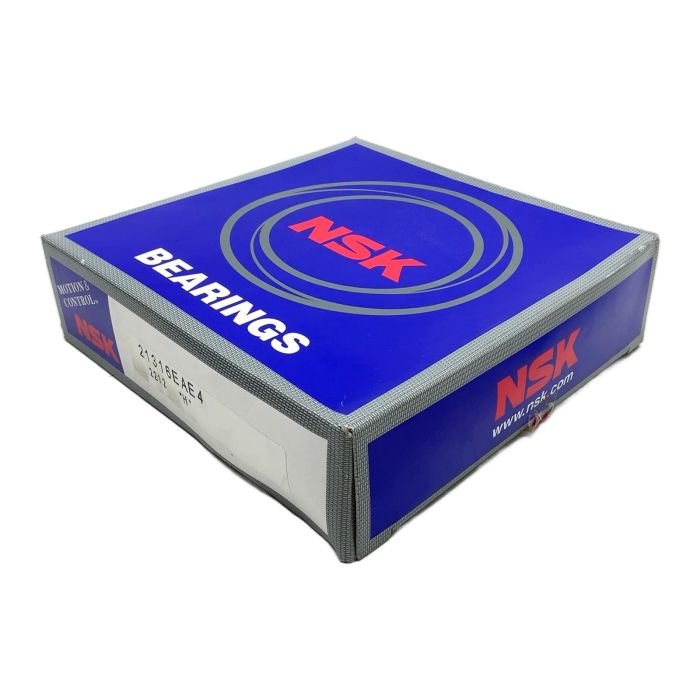

Label Info

• NSK 21316EAE4
• Batch Code: 2212 *H*

Application

Ideal for use in gearboxes, continuous casters, vibratory machinery, and other heavy-duty equipment where misalignment and high loads are a concern.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this pre-owned bearing, you are helping to prevent the emission of approximately 9.8 kg of CO2. This is equivalent to the savings from driving a car for 49 kilometers.

Availability

This item is in stock and ready for immediate dispatch. The outer box has been opened, but the bearing itself is new and sealed in its original factory plastic. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'EA' indicates a high-capacity design with a pressed steel cage. The 'E4' denotes a lubrication groove and lubrication holes in the outer ring, which is a standard feature to facilitate effective re-lubrication.

Spherical roller bearings are primarily designed for high loads at moderate speeds. While the steel cage offers good performance, for very high-speed applications, you should consult the manufacturer's documentation for limiting speeds and lubrication requirements.

The appropriate lubrication (grease or oil) depends heavily on the specific operating conditions, including speed, load, and temperature. It is crucial to use a high-quality grease with an appropriate viscosity and EP (Extreme Pressure) additives for most industrial applications.
