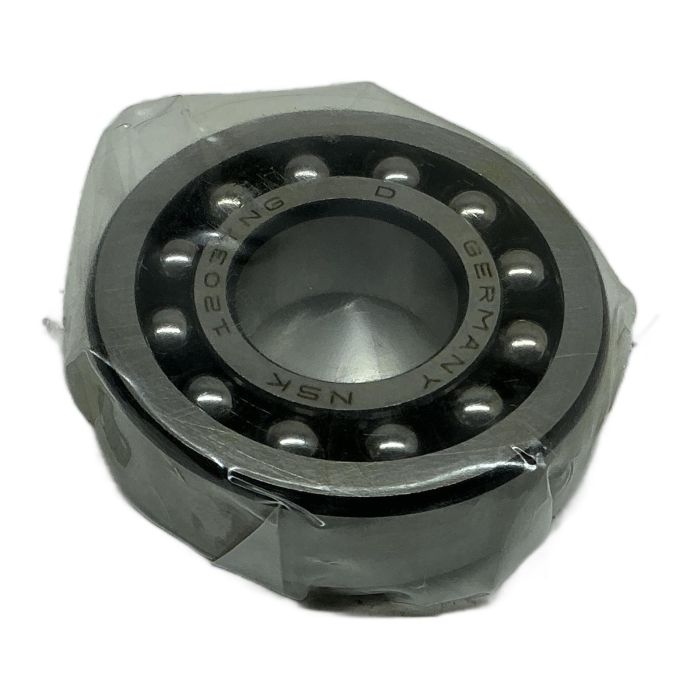

NSK 1203TNG Self-Aligning Ball Bearing

Description

The NSK 1203TNG is a high-precision self-aligning ball bearing designed to accommodate misalignment between the shaft and housing. This bearing is ideal for applications where shaft deflection is expected. Manufactured in Germany, it adheres to the highest quality standards, ensuring reliability and extended operational life.

Specifications

• Bore Diameter (d): 17 mm
• Outside Diameter (D): 40 mm
• Width (B): 12 mm
• Cage Type: TNG (Polyamide)
• Number of Rows: 2
• Basic Dynamic Load Rating: 6.95 kN
• Basic Static Load Rating: 1.78 kN

Label Info

• Brand: NSK
• Model: 1203TNG

Application

This bearing is suitable for a wide range of industrial applications, including agricultural machinery, textile machines, conveying systems, and fans where minor angular misalignments can occur.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid approximately 0.14 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'TNG' suffix in NSK bearings typically denotes a glass-fibre reinforced polyamide 6.6 cage. This type of cage is lightweight, offers excellent sliding properties, and is suitable for high-speed applications.

The primary advantage is its ability to accommodate static and dynamic misalignment. The outer ring has a spherical raceway, allowing the inner ring, balls, and cage assembly to rotate freely around the bearing center, compensating for shaft deflection or housing alignment errors.

The polyamide cage (TNG) has a maximum continuous operating temperature of around 120 deg C. For applications exceeding this temperature, a bearing with a steel or brass cage (e.g., suffix M) would be a more suitable choice.
