Norgren VP50 Series Proportional Pressure Control Valve

Description

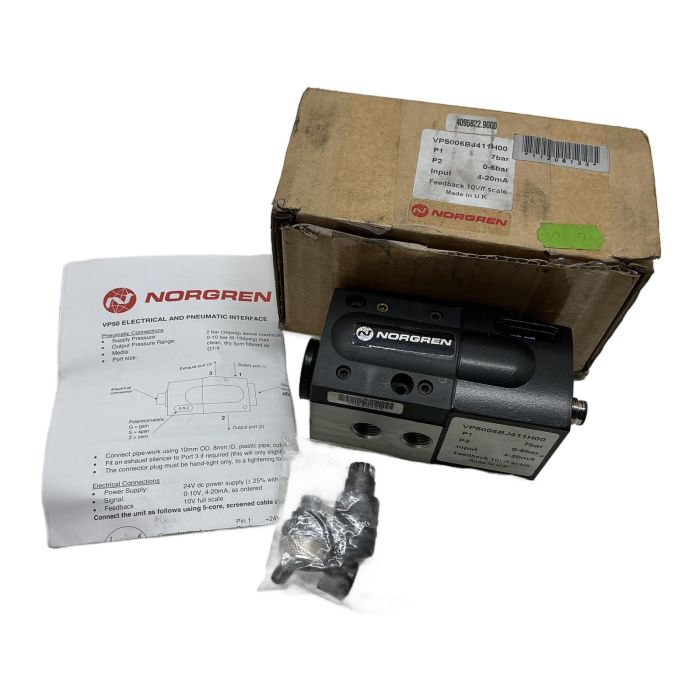

The Norgren VP5006BJ411H00 is a high-precision electro-pneumatic proportional valve designed for applications requiring accurate pressure control. It converts a variable electrical input signal (4-20mA) into a proportional pneumatic output pressure (0-6 bar). This valve is ideal for industrial automation systems where fine control of cylinders, actuators, and other pneumatic equipment is critical. It includes a 10V feedback signal for closed-loop control and system monitoring. This unit is new in its original box, complete with connector and documentation.

Specifications

• Manufacturer: Norgren
• Type: VP5006BJ411H00
• Part Number: 4095822.9000
• Series: VP50
• Function: Proportional Pressure Control Valve
• Input Signal: 4-20mA
• Output Pressure (P2): 0-6 bar
• Supply Pressure (P1): 7 bar
• Feedback Signal: 10V full scale
• Port Connections: G3/8
• Electrical Connection: M12 5-pin
• Power Supply: 24V DC

Label Info

• P1: 7bar
• P2: 0-6bar
• Input: 4-20mA
• Feedback: 10V/f.scale

Application

This valve is widely used in factory automation, material handling, packaging machinery, and process control applications where precise and repeatable pressure regulation is essential for product quality and process efficiency.

Country of Origin

Made in the United Kingdom.

CO2 Impact

By purchasing this reconditioned item, you are helping to avoid the emission of 18 kg of CO2. This is comparable to the savings from driving a car for 90 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'Z' potentiometer adjusts the zero point, setting the output pressure when the input signal is at its minimum (e.g., 4mA). The 'G' potentiometer adjusts the gain or span, setting the output pressure at the maximum input signal (e.g., 20mA). These allow for fine-tuning the valve's response to your specific application requirements.

The manufacturer recommends using compressed air filtered to at least 5 micrometres. The air should be dry and non-lubricated to prevent internal contamination and ensure consistent, reliable operation over the valve's lifespan.

Yes, absolutely. The 4-20mA current loop input is a common industrial standard, making it fully compatible with most PLC analog output modules. The 10V feedback can also be connected to a PLC analog input module to monitor the valve's output pressure.
