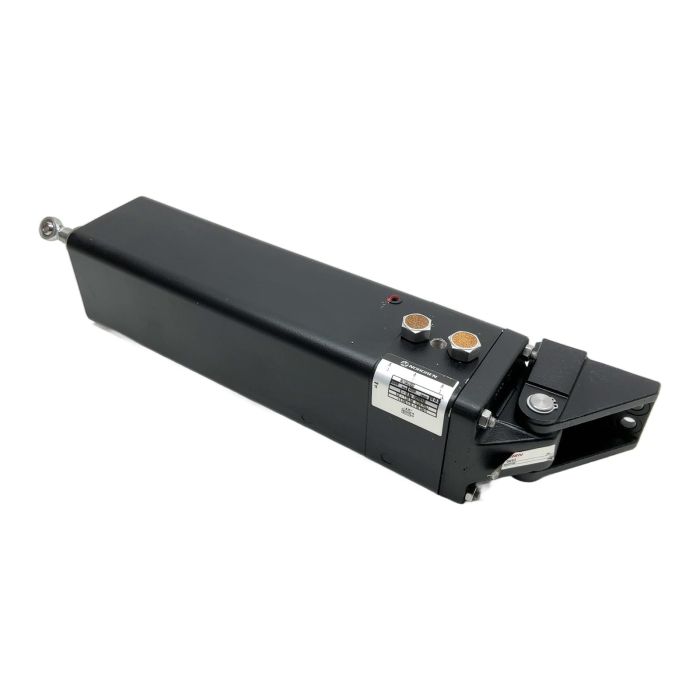

Norgren M/1540/20/200 Guided Pneumatic Actuator

Description

The Norgren M/1540/20/200 is a high-performance guided linear actuator designed for applications requiring precise and stable movement. With its integrated guide system, it prevents piston rod rotation and handles side loads effectively. This actuator is ideal for various industrial automation tasks such as lifting, pressing, and positioning. This unit includes a QM/912 L-type mounting bracket.

Specifications

• Manufacturer: Norgren
• Model: M/1540/20/200
• Type: Guided Pneumatic Actuator
• Bore Size: 20 mm (inferred)
• Stroke Length: 200 mm
• Working Pressure: 2 - 10 bar
• Control Pressure: 0.2 - 1.04 bar
• Operating Temperature: +5 deg C to +80 deg C
• Mounting: Includes QM/912 L-Mounting Bracket

Label Info

• Main Part Number: M/1540/200
• Mounting Part Number: QM/912

Application

This guided actuator is suitable for a wide range of applications in automated manufacturing, including material handling, assembly lines, clamping systems, and packaging machinery where non-rotating and accurate linear motion is critical.

Country of Origin

Norgren is a global company with manufacturing facilities worldwide, including the UK, Germany, and the USA.

CO2 Impact

Opting for a reconditioned component like this actuator saves approximately 32 kg of CO2 emissions compared to manufacturing a new one, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the bore size of this M/1540/200 actuator?

While the main label specifies the stroke (200mm), a secondary label indicates a base model of M/1540/20. Based on Norgren's part number convention, this strongly implies a 20mm bore size.

The M/1540 series uses an integrated plate guide system. This provides good rigidity and resistance to side loads, ensuring stable and non-rotating movement of the piston rod.

Yes, the images and labels confirm that the QM/912 L-type mounting bracket is attached to the actuator and is included in this offer.
