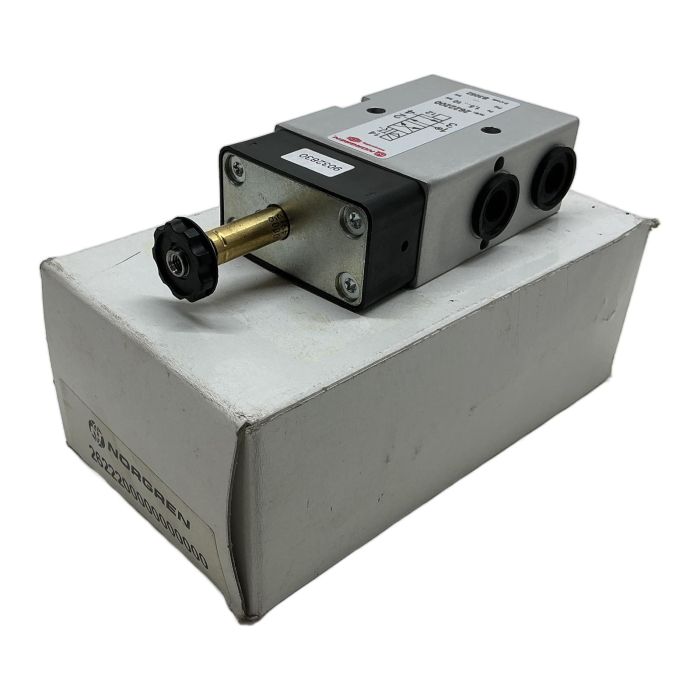

Norgren 2622200 3/2-Way G1/4 Mechanical Poppet Valve

Description

This Norgren 2622200 is a mechanically operated 3/2-way poppet valve, part of the proven Herion series. It provides reliable manual control for pneumatic systems through a simple push/pull knob. Designed for durability, this valve is suitable for a wide range of industrial applications where direct, manual intervention is required. Its normally closed configuration ensures that flow is blocked until the valve is actively actuated.

Specifications

• Manufacturer: Norgren
• Part Number: 2622200
• Function: 3/2-way, Normally Closed (NC)
• Actuation Type: Manual Push/Pull with Spring Return
• Port Connection: G1/4
• Operating Pressure Range: 1.5 to 10 bar
• Ambient Temperature Range: -10 deg C to +70 deg C
• Medium: Compressed air, filtered, lubricated or non-lubricated
• Body Material: Aluminium

Label Info

• Brand: NORGREN, Incorporating HERION
• Id.Nr.: 2622200
• Pe: 1,5...10 bar
• D-Code: B3052

Application

Ideal for use in industrial automation for applications such as manual overrides, safety-related stop functions, single-acting cylinder control, and piloting other valves within a pneumatic circuit.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this new-old-stock valve over a newly manufactured one prevents approximately 12.0 kg of CO2 emissions, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A 3/2-way valve has three ports and two positions. 'Normally Closed' (NC) means that in its resting state (unactuated), the inlet port (1) is blocked, and the outlet port (2) is connected to the exhaust port (3), venting any downstream pressure.

Yes, valves with this type of push/pull actuator are often designed for panel mounting. You would need to check the thread size and diameter of the actuator bushing to ensure it fits your panel cutout.

This is a manufacturer's production code, often indicating the factory, date, and shift of production. While the exact meaning is internal to Norgren, it is used for traceability.
