Norgren 1258133 Device Socket Connector

Description

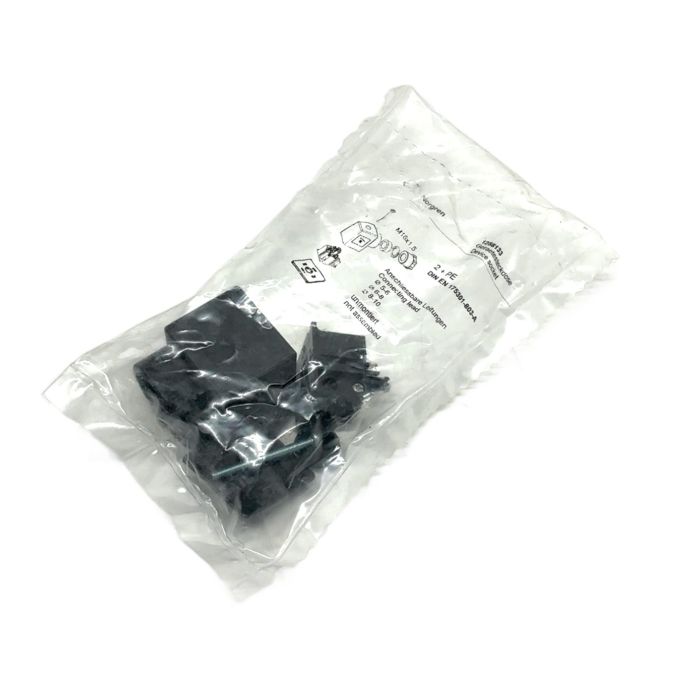

The Norgren 1258133 is a standard device socket designed for connecting solenoid coils on pneumatic and hydraulic valves. It complies with the widely used DIN EN 175301-803 Form A standard, ensuring interchangeability and reliable performance. This item is supplied new in its original packaging, unassembled, to facilitate easy termination of your specific cable.

Specifications

• Manufacturer: Norgren
• Part Number: 1258133
• Connector Type: Device Socket
• Standard: DIN EN 175301-803 Form A
• Number of Poles: 2 + PE (Protective Earth)
• Cable Entry: M16 x 1.5
• Accepted Cable Diameter: 5 mm to 10 mm
• Voltage Rating: Up to 250V AC/DC

Label Info

• Geraetesteckdose / Device socket
• 2 + PE
• DIN EN 175301-803-A
• Anschliessbare Leitungen (Connecting lead): 5-6, 6-8, 8-10 mm

Application

This connector is universally used in automation, machine building, and process control for wiring solenoid valves, pressure switches, and other sensors that utilize the DIN Form A interface.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

By purchasing this new old stock component, you avoid the production of a new one, saving an estimated 1.0 kg of CO2. This saving is comparable to charging your smartphone 120 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the IP rating of this connector when properly assembled and installed?

When correctly assembled with the proper gasket and tightened cable gland, a DIN EN 175301-803 Form A connector like the Norgren 1258133 typically achieves an IP65 rating. This means it is dust-tight and protected against water jets from any direction.

Yes, this 2+PE device socket is a universal connector suitable for both AC and DC applications up to 250V, which is the standard rating for this type of connector. Always check the voltage rating of the solenoid coil you are connecting.

You will need a wire stripper to prepare the cable conductors, a small flat-head or Phillips screwdriver to tighten the terminal screws for the conductors, and a spanner or pliers for the M16 cable gland nut to ensure a tight seal.
