Nocado Pneumatic Actuator SV-Antrieb 6782

Description

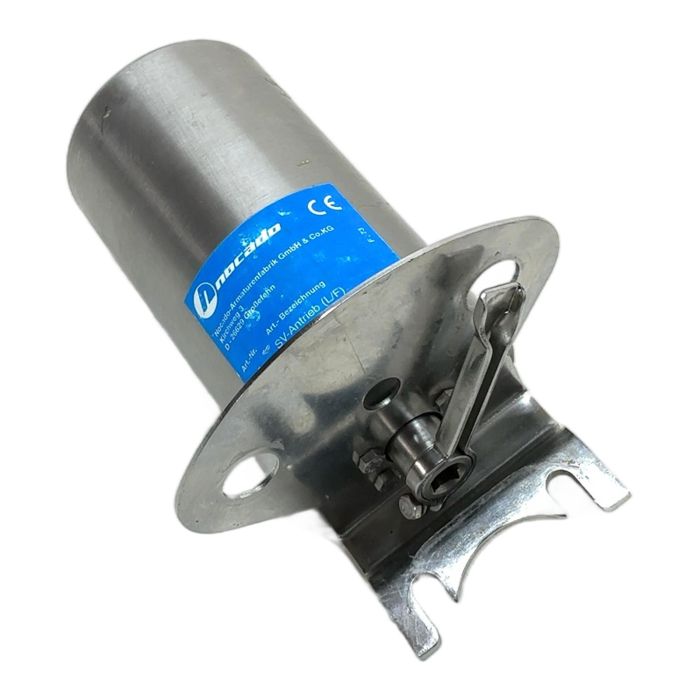

This is a single-acting pneumatic actuator, model SV-Antrieb, from Nocado. Constructed from high-quality stainless steel, it is designed for demanding applications in the food, beverage, and pharmaceutical industries. Its 'air-to-open, spring-to-close' functionality provides a fail-safe mechanism, ensuring the attached valve closes automatically upon loss of compressed air. This actuator is ideal for automating sanitary butterfly valves.

Specifications

• Manufacturer: Nocado
• Type: Pneumatic Actuator, Single-Acting
• Model: SV-Antrieb
• Part Number: 6782
• Function: Air-to-open / Spring-to-close (Normally Closed)
• Housing Material: Stainless Steel

Label Info

• Art.-Nr.: 6782
• Art.-Bezeichnung: SV-Antrieb (L/F) luftoeffnend / federschliessend
• Manufacturer: Nocado-Armaturenfabrik GmbH & Co.KG, Germany

Application

Designed for the automation of sanitary butterfly valves in process lines where fail-safe operation is critical. Common industries include dairy, brewing, beverage production, and pharmaceutical manufacturing.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned component, you are avoiding the production of a new one, saving an estimated 2.4 kg of CO2 emissions. This is comparable to the emissions from driving a car for 12 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This actuator is specifically designed for Nocado's range of sanitary butterfly valves, such as their BAV and ZAV series. The mounting interface is specific to these valve types.

This describes a 'Normally Closed' or 'Fail-Safe Close' operation. Compressed air is used to open the valve, and a powerful internal spring automatically closes it when the air pressure is removed, either intentionally or due to a system failure.

While not stated on the label, Nocado SV-series actuators typically operate with a control air pressure of 6 to 8 bar. For precise specifications, it is recommended to consult the official Nocado datasheet for the corresponding valve size.
