Generic 9-Pin Female Encoder/Signal Cable

Description

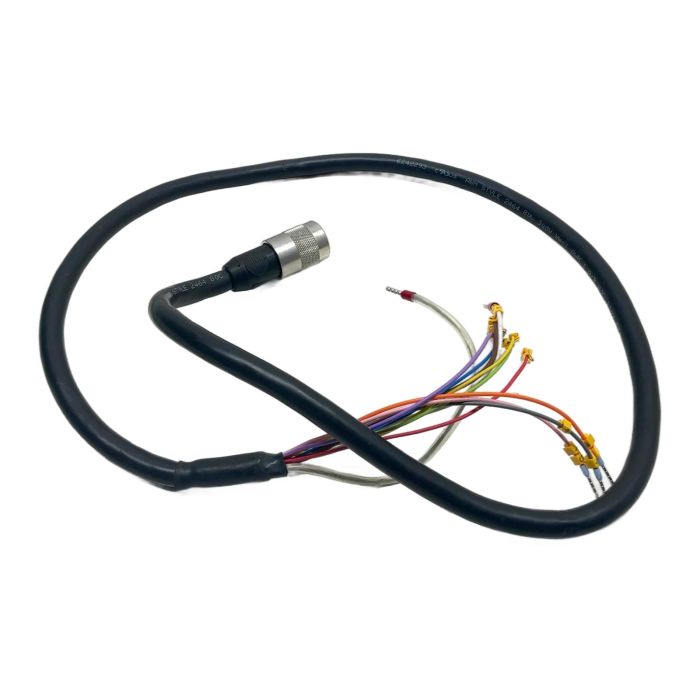

This is a versatile and robust connection cable designed for a wide range of industrial automation applications. It features a durable 9-pin female circular connector on one end and professionally terminated wires with insulated ferrules on the other, making it ready for integration into your system. The cable adheres to the AWM Style 2464 standard, ensuring high-quality performance and safety.

Specifications

• Connector Type: 9-Pin Female Circular, Screw-Locking
• Termination: Pre-stripped wires with insulated ferrules
• Cable Standard: AWM Style 2464
• Voltage Rating: 300V
• Temperature Rating: 80 deg C
• Flame Resistance: VW-1, FT1

Label Info

• UL File No: E242293
• Cable Marking: cRUus AWM STYLE 2464 80C 300V VW-1 AWM I A/B 80C 300V FT1

Application

Ideal for connecting encoders, servo motors, sensors, and other devices in factory automation, robotics, and machinery. The open-ended design allows for custom wiring to terminal blocks or other connectors.

Country of Origin

The bulk cable is manufactured in China (based on UL file number). The final assembly origin is not specified.

CO2 Impact

Choosing this reused cable assembly saves an estimated 6.0 kg of CO2 compared to a new one. This is equivalent to the emissions from driving a standard car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the pinout for this 9-pin connector?

The pinout is not standard and depends on the specific equipment it was intended for. Users must verify the pinout with their device's documentation before connecting to avoid damage.

While the cable has enough conductors, its suitability for specific protocols like RS232 or CAN bus depends on factors like shielding, impedance, and wire gauge, which are defined by the AWM 2464 standard. It is primarily designed for sensor and encoder signals, but compatibility should be verified.

The AWM 2464 standard covers a range of wire gauges. Without a specific datasheet for this exact cable, the gauge is not specified, but it is typically between 20 AWG and 28 AWG for this type of application cable.
