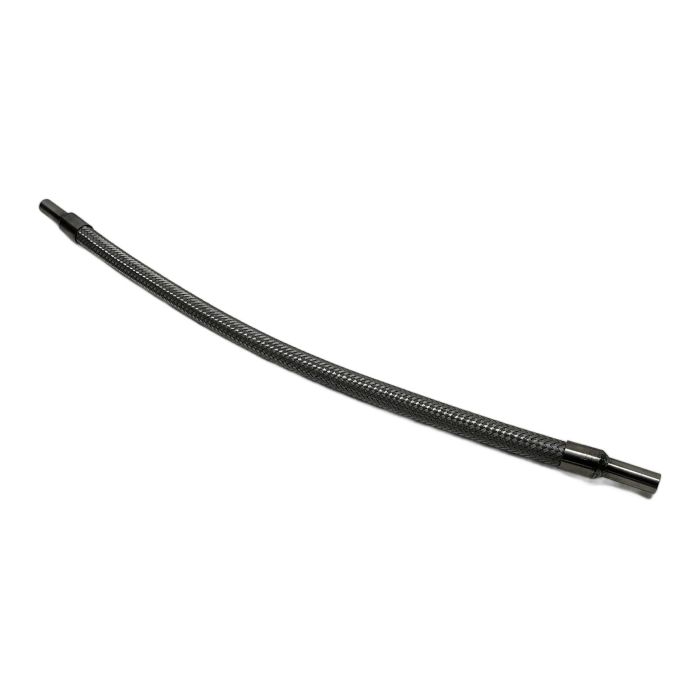

Unbranded Flexible Stainless Steel Hose 500mm DN10

Description

This is a high-quality, unbranded flexible hose designed for industrial applications requiring durability and flexibility. Constructed with a stainless steel braid, it offers excellent resistance to abrasion, corrosion, and high pressure. The hose measures 500 mm in length with a nominal diameter of DN10 (10 mm), making it suitable for various fluid or gas transfer systems. The plain tube ends allow for versatile connection options using compression fittings.

Specifications

• Product Type: Flexible Braided Hose
• Material: Stainless Steel (SS)
• Length: 500 mm
• Nominal Diameter: DN10 (10 mm)
• End Connections: Plain Tube / Stub Ends

Label Info

• Part Number: 103000
• Internal Code: L-55-02-B

Application

Ideal for use in hydraulic systems, pneumatic lines, chemical transfer, and other industrial environments where a robust and reliable flexible connection is needed.

CO2 Impact

Choosing this reused component saves approximately 0.3 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone 36 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The maximum pressure is not specified on the label. For a standard DN10 braided stainless steel hose, working pressures can typically range from 100 to 200 bar, but it is crucial to verify this with the specifications of the system it will be installed in.

These plain or stub ends are designed for use with compression fittings or certain types of push-to-connect fittings rated for stainless steel tubing. The choice of fitting depends on the system's pressure, temperature, and the fluid being transported.

While made of stainless steel, this hose does not come with any certification for food-grade or sanitary use. For such applications, a hose with specific certifications (e.g., FDA, 3-A) and appropriate sanitary fittings would be required.
