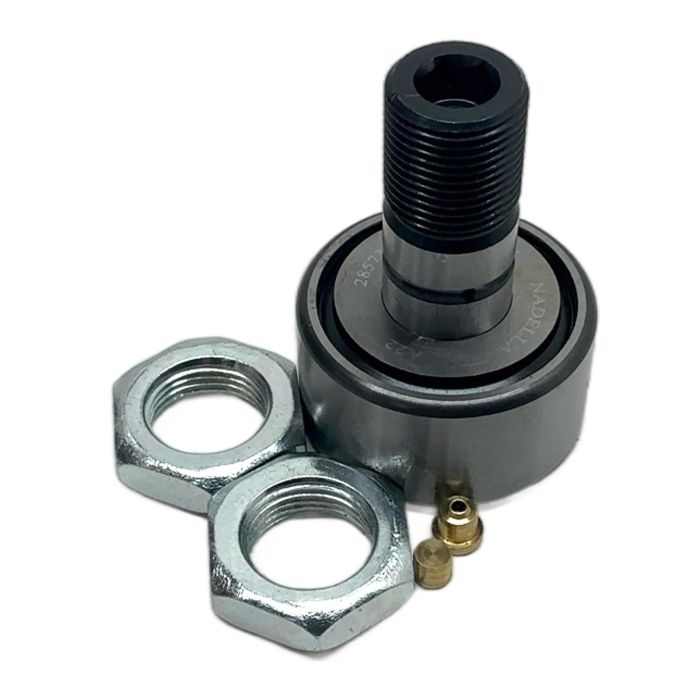

Nadella GC 47 SW Stud Type Cam Follower

Description

The Nadella GC 47 SW is a high-performance stud type cam follower designed for demanding industrial applications. It features a full complement of needle rollers, providing high radial load capacity and shock resistance. The SW suffix indicates that it is sealed on both sides, offering excellent protection against dust, dirt, and moisture, which extends its service life. This component is ideal for use in conveyor systems, automation equipment, and various linear motion guides.

Specifications

• Manufacturer: Nadella
• Type: GC 47 SW
• Category: Stud Type Cam Follower
• Outer Diameter: 47 mm
• Stud Diameter: 20 mm
• Overall Length: 66 mm
• Thread: M20x1.5
• Sealing: Double Sealed (SW)

Label Info

• Brand: NADELLA
• Part Number: GC 47 SW
• Lotto: N321125263
• Data lotto: 23/12/21

Application

This cam follower is suitable for a wide range of applications, including but not limited to packaging machinery, automated assembly lines, material handling equipment, and machine tools where precise and reliable linear motion is required.

Country of Origin

This product is manufactured in Italy.

CO2 Impact

By choosing this reused industrial part, you are contributing to a more sustainable future. This single item saves approximately 0.88 kg of CO2 emissions compared to producing a new one. That's equivalent to the CO2 absorbed by a tree in over two weeks.

Availability

This item is new in its original, opened box and is ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'SW' suffix signify in the GC 47 SW model?

The 'SW' designation indicates that the bearing is equipped with protective seals on both sides. These seals provide excellent protection against contaminants like dust and moisture, and help retain lubricant, extending the operational life of the cam follower.

Nadella typically recommends a lithium-based grease with EP (Extreme Pressure) additives. However, it is crucial to consult the official manufacturer's datasheet for the specific grease type and relubrication intervals based on your application's speed, load, and operating environment.

Stud type cam followers like the GC 47 SW are primarily designed to handle high radial loads. While they can accommodate some incidental axial loads from misalignment or light thrust, they are not intended for pure thrust applications. For significant axial loads, a different type of bearing, such as a thrust bearing, should be considered.
