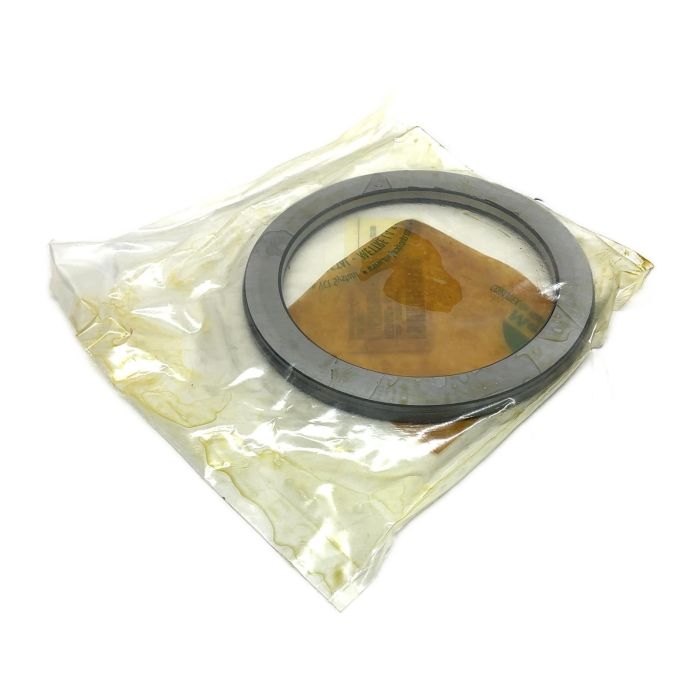

NADELLA AX 9 120 155 Needle Roller Thrust Bearing

Description

The NADELLA AX 9 120 155 is a high-quality needle roller and cage thrust assembly designed to accommodate heavy axial loads and peak loads. Its slim design makes it ideal for applications where space is limited. This bearing provides a high degree of stiffness within a minimal axial space.

Specifications

• Manufacturer: NADELLA
• Type: Needle Roller Thrust Bearing
• Model: AX 9 120 155
• Inner Diameter (d): 120 mm
• Outer Diameter (D): 155 mm
• Height (B): 5 mm

Label Info

• Article Number: AX9120155
• Lot Number: 18056156NA
• Lot Date: 06/06/2018

Application

These bearings are commonly used in automotive transmissions, machine tools, industrial gearboxes, and other applications requiring high axial load capacity in a constrained space.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this surplus component avoids the production of a new one, saving an estimated 0.8 kg of CO2. This is comparable to the emissions saved by not driving a car for 4 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What are the compatible thrust washers for the AX 9 120 155 bearing?

Answer: This needle roller and cage assembly is designed to be used with thrust washers from the AS series (AS120155) or directly against hardened and ground machine components. Ensure the raceway surface has a hardness of at least 60 HRC for optimal performance and lifespan.

Answer: The limiting speed depends on the lubrication method. For grease lubrication, the speed rating is typically lower than for oil lubrication. Refer to the official Nadella catalog for precise speed limits based on your specific application and lubrication conditions to prevent premature wear.

Answer: No, the AX 9 120 155 is a thrust bearing, designed exclusively to handle axial (thrust) loads in one direction. It cannot accommodate any radial loads. For applications with combined radial and axial loads, a different type of bearing, such as an angular contact ball bearing, would be required.
