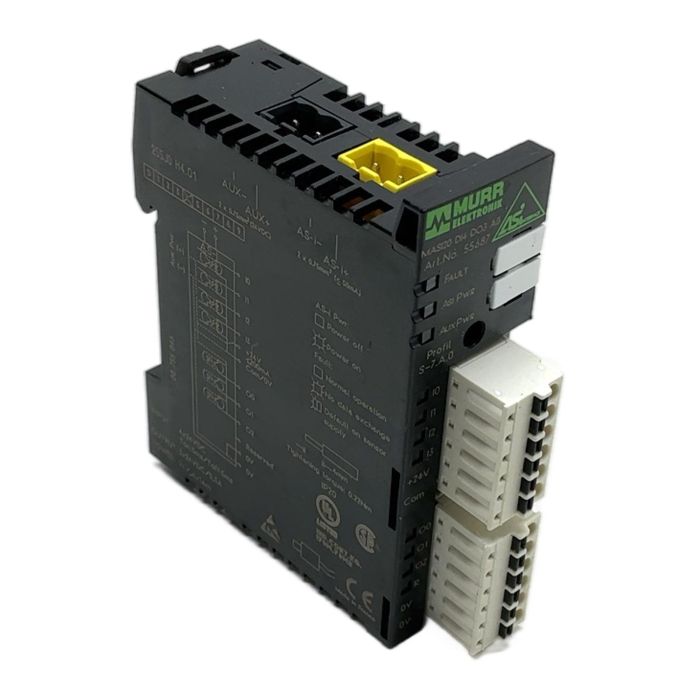

Murrelektronik MASI20 AS-Interface Module

Description

The Murrelektronik MASI20 DI4 DO3 AB (Art. No. 55687) is a compact and reliable AS-Interface I/O module designed for use in control cabinets. It facilitates the simple connection of digital sensors and actuators to a master PLC via the AS-i bus, making it an excellent choice for decentralized control architectures. This module offers four digital inputs and three digital outputs, with convenient screw terminals for wiring.

Specifications

• Manufacturer: Murrelektronik
• Model: MASI20 DI4 DO3 AB
• Article Number: 55687
• Number of Digital Inputs: 4
• Number of Digital Outputs: 3
• Output Current: 0.5A per channel
• Operating Voltage: 24V DC (external for outputs)
• Communication Protocol: AS-Interface
• AS-i Profile: S-7.A.C
• Connection Type: Screw Terminals
• Protection Class: IP20

Label Info

• Input: 4x24VDC, Ton:5ms/Toff:5ms
• Output: 3x24VDC/0,5A
• Power: 24V extern

Application

Ideal for various industrial automation applications, including material handling, packaging machinery, and manufacturing lines where decentralized I/O is required to reduce wiring complexity and cost.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned unit, you are contributing to a circular economy and have helped avoid approximately 6.0 kg of CO2 emissions, which is a significant step towards sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This module uses AS-i Profile S-7.A.C, which is standard for a device with 4 digital inputs and 3 digital outputs.

Each of the three digital outputs is rated for a maximum load of 0.5 Amperes (500mA).

The module requires two separate power sources: one from the AS-i bus (via the yellow flat cable) for the bus communication and inputs, and a separate external 24V DC auxiliary power supply (AUX) for the outputs.
