Murrelektronik 7/8 Inch Sensor/Actuator Cable Assembly

Description

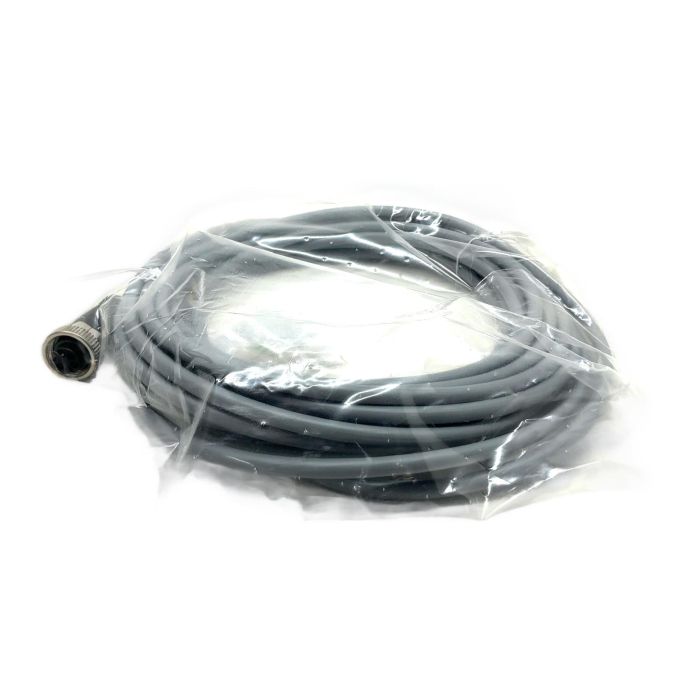

This is a Murrelektronik pre-assembled cable, part number 7000-78021-9651000. It features a straight 7/8 inch female connector on one end and flying leads on the other. The cable is 10 meters long and has a robust, grey PUR (Polyurethane) jacket suitable for industrial use, offering excellent resistance to oils and abrasion. With 5 cores of 1.0 mm2 cross-section, it is designed for both signal and power applications up to 400V AC/DC and 12A.

Specifications

• Manufacturer: Murrelektronik
• Article Number: 7000-78021-9651000
• Connector Type: 7/8 inch female, 0 deg straight
• Number of Poles: 5
• Cable Length: 10 m
• Cable Type: PUR (Polyurethane), grey jacket
• Conductor Cross-Section: 5x1.0 mm2
• Operating Voltage: max. 400 V AC/DC
• Operating Current per Contact: max. 12 A
• Protection Class: IP67 (when mated)

Label Info

• Art.-No.: 7000-78021-9651000
• Description: 7/8 inch female 0 deg with cable, PUR 5x1.0 gy 10m
• Rating: 230 V AC/DC; 400 V AC/DC / 12 A
• Code: 06018

Application

Ideal for connecting sensors, actuators, and power distribution boxes in automation technology, machine building, and process control. The 7/8 inch standard is commonly used for power connections to components like solenoid valves, motors, and fieldbus modules.

Country of Origin

Made in Czech Republic.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 60 kg of CO2 emissions. This is comparable to the savings of driving a standard passenger car for 300 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the primary advantage of a PUR jacket on this cable?

The Polyurethane (PUR) jacket offers superior resistance to oils, chemicals, and mechanical stress, such as abrasion and tearing. This makes the cable highly durable and reliable in harsh industrial environments, especially where there is exposure to lubricants or frequent movement.

While PUR jackets offer good flexibility, this specific cable (Style 965) is generally intended for static or occasional flexing applications. For continuous flexing in a drag chain, Murrelektronik offers specific cables designed for high cycle counts. Always check the cable's datasheet for its flexing rating before use in dynamic applications.

This warning indicates that the connector is not designed to be disconnected while under electrical load. Doing so can cause an electric arc between the contacts, which can damage the connector and pose a safety risk. Always ensure the power to the circuit is switched off before connecting or disconnecting this cable.
