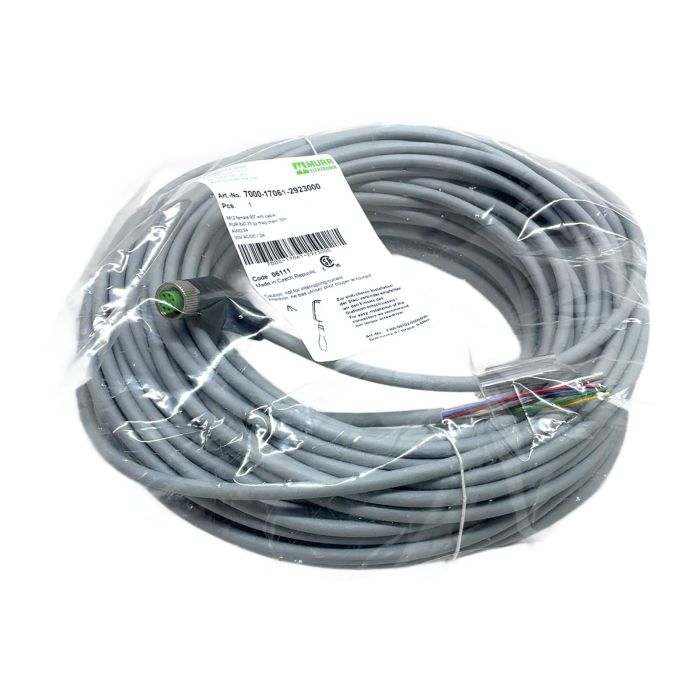

Murrelektronik M12 Sensor/Actuator Cable, 30m, 8-Pin

Description

This high-quality, pre-assembled cable from Murrelektronik is designed for reliable signal transmission in industrial automation systems. It features a 90-degree angled, 8-pin M12 female connector on one end and flying leads on the other, over a total length of 30 meters. The robust PUR (Polyurethane) jacket is specifically designed for use in drag chains (cable carriers), offering excellent resistance to abrasion, oils, and chemicals.

Specifications

• Manufacturer: Murrelektronik
• Part Number: 7000-17061-2923000
• Connector Type: M12 Female, Angled (90 deg.)
• Number of Pins: 8
• Cable Length: 30.0 meters
• Jacket Material: PUR (Polyurethane), Gray
• Cable Specification: 8 x 0.25 mm2 (AWG 24)
• Application: Drag chain compatible
• Operating Voltage: max. 30V AC/DC
• Operating Current per Contact: max. 2A
• Locking Mechanism: Screw thread (M12 x 1 mm)

Label Info

• Art.-No.: 7000-17061-2923000
• Code: 06111

Application

Ideal for connecting sensors, actuators, and other components in machine building, robotics, automated assembly lines, and material handling systems where a long, flexible, and durable cable is required.

Country of Origin

Czech Republic

CO2 Impact

Opting for this component over a new one prevents the emission of an estimated 74 kg of CO2, a saving equivalent to driving a car for 370 kilometers. Make a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the minimum bend radius for this drag-chain compatible cable?

According to the manufacturer's datasheet, the minimum bend radius for flexible use is 10 times the outer diameter of the cable, ensuring longevity in dynamic applications.

Yes, the Polyurethane (PUR) jacket offers excellent resistance to oils, greases, and many common industrial chemicals, making it highly suitable for harsh factory environments.

While it has 8 pins, this is a standard sensor/actuator cable and is not shielded or twisted in pairs for high-speed data transmission like Profinet or EtherCAT. For industrial Ethernet, you should use a dedicated, shielded, D-coded (4-pin) or X-coded (8-pin) M12 cable.
