Murrelektronik Industrial PROFINET Ethernet Cable

Description

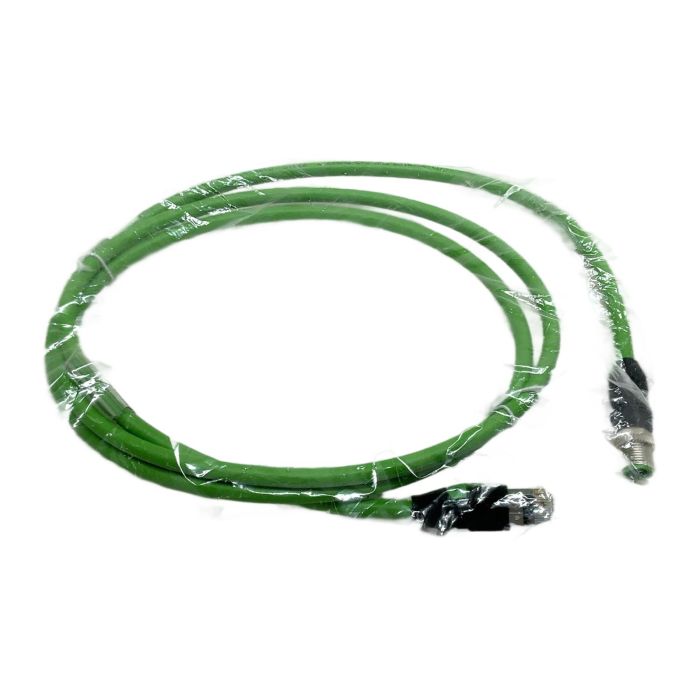

This high-quality industrial Ethernet cable, part number 7000-44711-7940150, from Murrelektronik is designed for reliable data communication in demanding automation environments. It features a robust, shielded construction with a 1.5-meter length, connecting a straight M12 D-coded male plug to a straight RJ45 male plug. The green PUR (Polyurethane) jacket provides excellent resistance to oils, chemicals, and abrasion.

Specifications

• Manufacturer: Murrelektronik
• Article Number: 7000-44711-7940150
• Connector A: M12 Male, 4-pole, D-coded, straight
• Connector B: RJ45 Male, straight
• Cable Length: 1.5 meters
• Jacket Material: PUR (Polyurethane)
• Jacket Color: Green
• Shielding: Yes, overall shield
• Operating Voltage: max. 60V DC
• Operating Current per Contact: max. 1.5 A
• Temperature Range: -25 to +85 deg C
• Wire Gauge: AWG 22/7

Label Info

• Art.-No.: 7000-44711-7940150
• Type: M12 male 0 deg / RJ45 male 0 deg shielded Ethernet
• Rating: 60V DC / 1.5 A

Application

Ideal for connecting sensors, actuators, and control units in PROFINET and other Industrial Ethernet networks. Suitable for factory automation, machine building, and process control applications where a durable and reliable connection is critical.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component instead of a new one prevents the emission of approximately 6.0 kg of CO2, which is comparable to driving a car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

D-coding is an industry standard specifically for 100 Mbit/s Industrial Ethernet and PROFINET applications. It uses a 4-pin configuration that ensures proper connection and prevents accidental mismating with other M12-coded connectors used for power (A-coded) or other network protocols.

Yes, the Polyurethane (PUR) jacket offers excellent resistance to oils, coolants, chemicals, and abrasion. This makes it ideal for harsh industrial environments, such as on machine tools or in production lines where such exposure is common.

While the PUR jacket is very durable for static or occasional flexing, this specific cable (cable type 794) is not explicitly rated by the manufacturer for high-flex or continuous motion drag chain use. For such applications, Murrelektronik offers specific drag-chain-rated cables designed to withstand millions of bending cycles.
