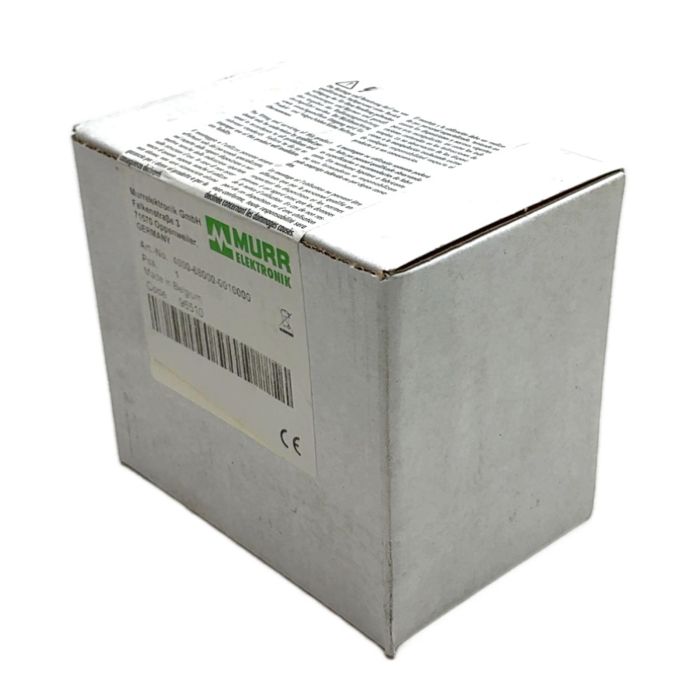

Murrelektronik M12 Cable Socket

Description

This is the Murrelektronik M12 female cable socket, article number 4000-68000-0010000. It is a high-quality, straight connector designed for use in a wide range of industrial automation applications. Ideal for connecting sensors, actuators, and other field-level devices, it provides a secure and reliable connection with an IP67 protection rating when properly mated.

Specifications

• Manufacturer: Murrelektronik
• Article Number: 4000-68000-0010000
• Connector Type: M12 Socket, Female
• Number of Poles: 4
• Coding: A-coded
• Orientation: Straight (0 deg)
• Operating Voltage: max. 250V AC/DC
• Operating Current: max. 4A per contact
• Protection Class: IP67 (when mated and secured)

Label Info

• Art.-No.: 4000-68000-0010000
• Code: 96510

Application

Commonly used in factory automation, robotics, and machine building to ensure dependable signal and power transmission to peripheral devices.

Country of Origin

Made in Belgium.

CO2 Impact

Choosing this reused industrial part saves an estimated 4.0 kg of CO2 compared to manufacturing a new one. This environmental saving is equivalent to driving a car for approximately 20 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A-coding is the most common M12 coding standard and is typically used for sensors, actuators, DC power, and 1 Gbit Ethernet. This connector is ideal for such sensor/actuator applications.

An IP67 rating means the connector is completely protected against dust ingress and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, once it is properly connected and tightened.

No, this 4-pole A-coded connector is not suitable for Profinet or most industrial Ethernet protocols. Those typically require 4-pole D-coded (for 100 Mbit) or 8-pole X-coded (for 10 Gbit) connectors.
