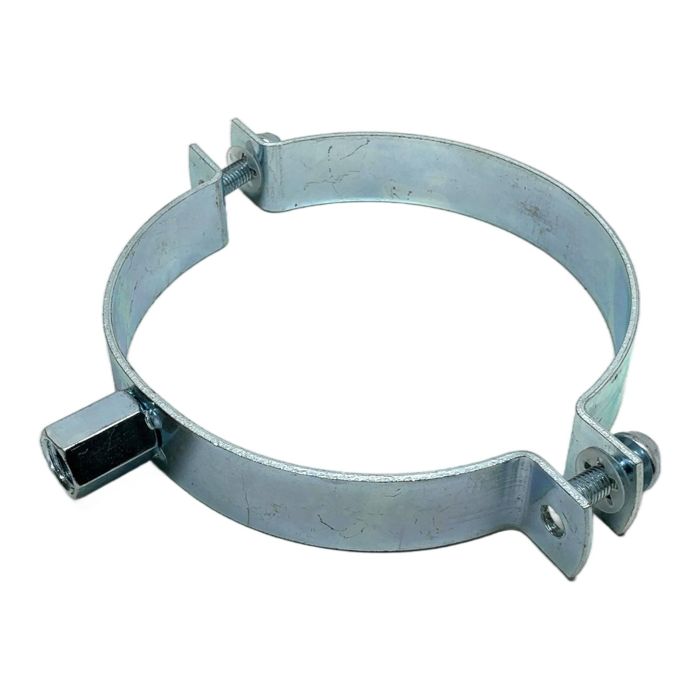

MUPRO 100 mm Two-Screw Pipe Clamp

Description

A high-quality, robust two-screw pipe clamp from MUPRO, designed for securely fastening pipes with a nominal diameter of 100 mm. This clamp is constructed from durable zinc-plated steel for excellent corrosion resistance. It features a combination M8/M10 connection nut for flexible mounting options with threaded rods, making it suitable for a wide range of industrial, plumbing, and HVAC applications. The two-screw design allows for easy installation and precise adjustment.

Specifications

• Manufacturer: MUPRO
• Type: Two-Screw Pipe Clamp
• Nominal Diameter: 100 mm
• Clamping Range: Approx. 108-115 mm
• Material: Steel
• Finish: Zinc-Plated
• Connection Thread: M8 / M10 Combination Nut

Label Info

• Stamped Marking: 100

Application

Ideal for mounting and securing pipelines for water, heating, ventilation, and air conditioning systems in both commercial and industrial buildings.

Country of Origin

Germany

CO2 Impact

By purchasing this reused item, you are contributing to a circular economy and helping to reduce industrial waste. This single clamp saves approximately 0.4 kg of CO2 compared to manufacturing a new one.

Availability

In stock, ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This clamp is designed for pipes with a 100 mm nominal bore, which typically corresponds to an outer diameter (OD) range of approximately 108 mm to 115 mm. Always measure your pipe's OD to ensure a proper fit.

The clamp is made from steel and is zinc-plated. This finish provides good protection against corrosion in typical indoor environments, making it suitable for most standard installations.

The connection nut has a stepped internal thread. The upper, wider section accepts an M10 threaded rod, while the deeper, narrower section is threaded for an M8 rod, providing flexibility for installation with the most common rod sizes.
