MPC Heavy-Duty Hose Clamp 270-280mm GBS W5 DS5270B

Description

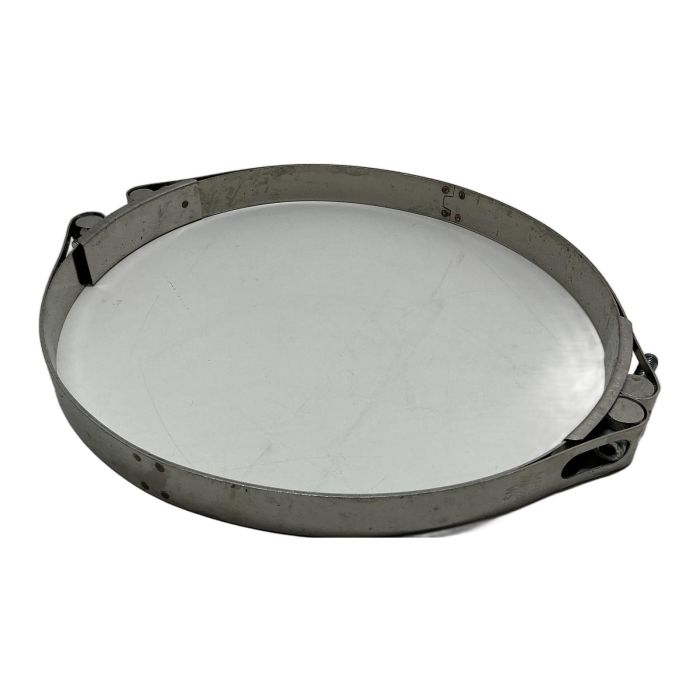

The MPC DS5270B is a GBS-type heavy-duty T-bolt hose clamp engineered for high-pressure applications where a secure, reliable seal is critical. Its robust construction makes it ideal for industrial machinery, heavy vehicles, and agricultural equipment. The W5 material grade ensures maximum durability and corrosion resistance even in harsh environments.

Specifications

• Manufacturer: MPC Industries
• Type: DS5270B
• Product Type: Heavy-Duty Hose Clamp (GBS-Type)
• Clamping Range: 270-280 mm
• Band Width: 24 mm
• Material: W5 Grade (AISI 316 Stainless Steel)
• Bolt: M8 T-Bolt

Label Info

• Marking: MPC 270-280 W5
• Part Number: DS5270B

Application

This clamp is designed for securing large-diameter, reinforced hoses used in suction and pressure lines, such as those found in hydraulic systems, irrigation, and bulk material transfer.

Country of Origin

Manufactured in Germany.

CO2 Impact

Choosing this reused heavy-duty clamp saves an estimated 0.6 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from charging a smartphone over 70 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

W5 indicates that all parts of the clamp - the band, bridge, and T-bolt - are made from AISI 316 grade stainless steel. This provides superior corrosion resistance, especially against chlorides and acids, making it suitable for marine, chemical, and food-grade applications.

For an M8 bolt on a GBS-type clamp of this size, a typical tightening torque is between 15 and 20 Nm. However, always refer to the hose manufacturer's specifications to avoid damaging the hose.

Yes, absolutely. The AISI 316 (W5) stainless steel construction offers excellent resistance to saltwater corrosion, making it an ideal choice for marine applications on boats, docks, and coastal installations.
