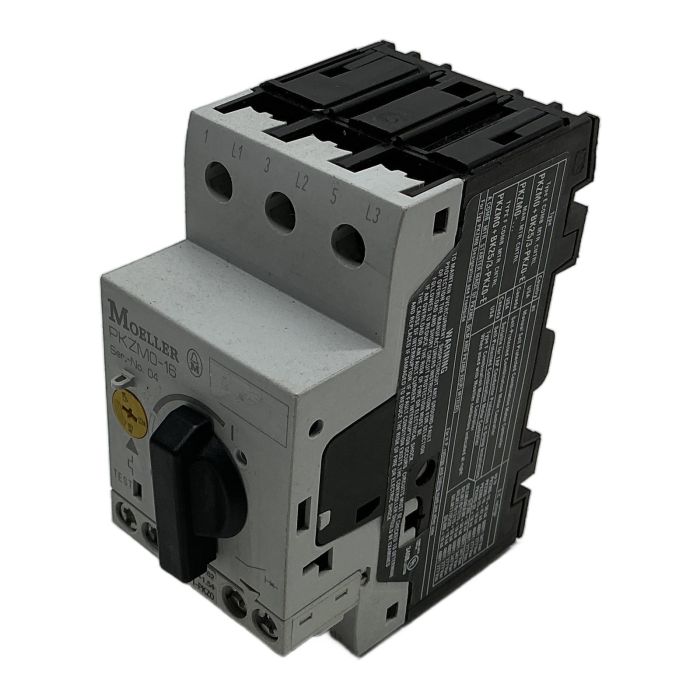

Moeller PKZMO-16 Motor Protection Circuit Breaker

Description

The Moeller PKZMO-16 is a high-performance motor protection circuit breaker designed for reliable and precise protection of three-phase motors. It features a convenient rotary switch for manual ON/OFF control and a thermal overload release that is adjustable from 10 to 16 Amperes. This device combines both overload and short-circuit protection in a compact, DIN-rail mountable unit, making it an excellent choice for industrial control panels. Built to meet IEC/EN 60947 standards, this breaker ensures high operational safety. The attached NHI-E-11-PKZO provides auxiliary contact functionality.

Specifications

• Manufacturer: Moeller (Part of Eaton)
• Model: PKZMO-16
• Poles: 3-Pole
• Adjustable Current Range: 10 - 16 A
• Rated Impulse Withstand Voltage (Uimp): 6000 V
• Rated Operational Voltage (Ue): up to 690V AC
• Short-Circuit Breaking Capacity (Icu) at 400V: 50 kA
• Trip Class: 10
• Mounting: DIN Rail

Label Info

• Moeller PKZMO-16
• Ser.-No. 04
• IEC/EN 60947
• Auxiliary Contact: NHI-E-11-PKZO

Application

This motor protector is ideal for direct-on-line (DOL) starting and protection of AC motors in various industrial applications, including conveyor systems, pumps, fans, and machine tools.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid 12.0 kg of CO2 emissions compared to a new purchase, contributing to a more sustainable industrial environment.

Availability

This product is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Eaton PKZM0-16 is the modern, direct successor to the Moeller PKZMO-16. While functionally very similar, the PKZM0 series features updated internal components, a slightly different form factor, and compliance with the latest electrical standards. Accessories are generally not cross-compatible between the two series.

Yes, it can be used for single-phase applications. To do so, you must wire the incoming and outgoing power through all three poles in series to ensure the thermal protection elements heat up evenly and trip correctly based on the motor's current draw. Refer to the manufacturer's wiring diagrams for proper connection.

The short-circuit trip current for the PKZMO-16 is fixed at 14 times the maximum rated current of the thermal setting. For this 16A model, the magnetic (short-circuit) trip is set at 224A (14 x 16A). This value is not adjustable.
