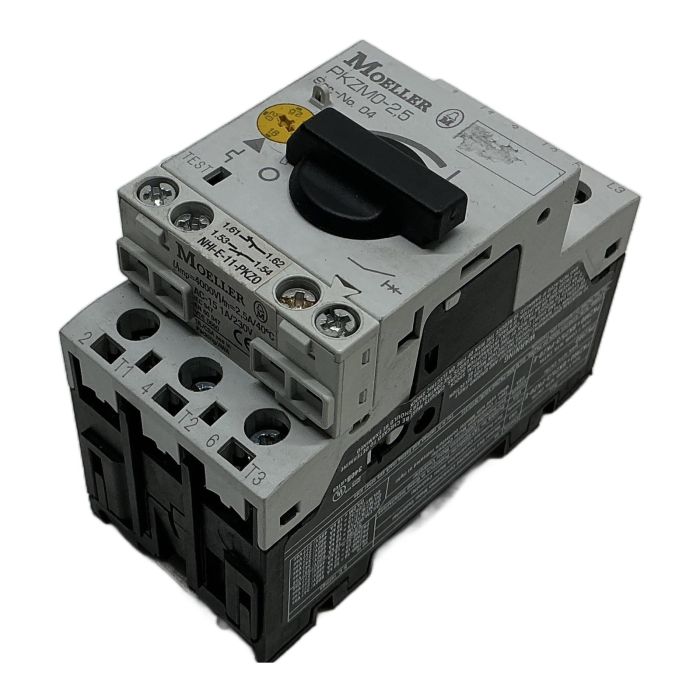

Moeller (Eaton) PKZM0-2,5 Motor Protection Circuit Breaker with NHI-E-11-PKZ0 Auxiliary Contact

Description

The Moeller PKZM0-2,5 is a high-quality motor protection circuit breaker designed to safeguard motors against overload and short circuits. This unit is from the renowned PKZM0 series, now under the Eaton brand, known for its reliability and durability in industrial environments. It features a rotary handle for manual switching and an adjustable current setting from 1.6 to 2.5 Amperes. This package includes a pre-installed NHI-E-11-PKZ0 auxiliary contact block for status signaling.

Specifications

• Manufacturer: Moeller (Eaton)
• Model: PKZM0-2,5
• Part Number: 072736
• Current Setting Range: 1.6 A to 2.5 A
• Rated Operational Voltage (Ue): up to 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6000 V
• Number of Poles: 3
• Auxiliary Contact: NHI-E-11-PKZ0 (1 NO + 1 NC)
• Standards: IEC/EN 60947

Label Info

• Main Unit: Moeller PKZM0-2,5, Ser.-No. 04
• Auxiliary Unit: Moeller NHI-E-11-PKZ0, AC-15 1A/230V
• Certifications: CE, UL, CSA, ATEX (PTB 02 ATEX 3151)

Application

Ideal for direct-on-line (DOL) starting and protection of three-phase asynchronous motors in various industrial applications such as conveyor systems, pumps, fans, and machine tools where reliable overload and short-circuit protection is required.

Country of Origin

Germany

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the production of a new one, which saves approximately 12 kg of CO2. This saving is comparable to the emissions of a 60 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the function of the attached NHI-E-11-PKZ0 auxiliary contact?

The NHI-E-11-PKZ0 is an auxiliary contact block that provides additional signaling contacts. The "-11-" designation indicates it has one Normally Open (NO) and one Normally Closed (NC) contact, which can be used for status indication in a control cabinet, such as signaling a trip condition to a PLC.

How do I correctly set the overload protection current on the PKZM0-2,5?

The overload protection is set using the yellow dial on the front of the device. You should set the dial to match the motor's full-load ampere (FLA) rating as specified on the motor's nameplate. The adjustable range for this model is 1.6 to 2.5 Amperes.

Is this PKZM0-2,5 suitable for use in potentially explosive atmospheres?

Yes, this unit carries an ATEX certification mark (Ex II(2)GD) and PTB 02 ATEX 3151, which makes it suitable for use in specific hazardous environments. However, it is crucial to verify that the specific zone and gas/dust group requirements of your application match the device's certification before installation.
